PUYA

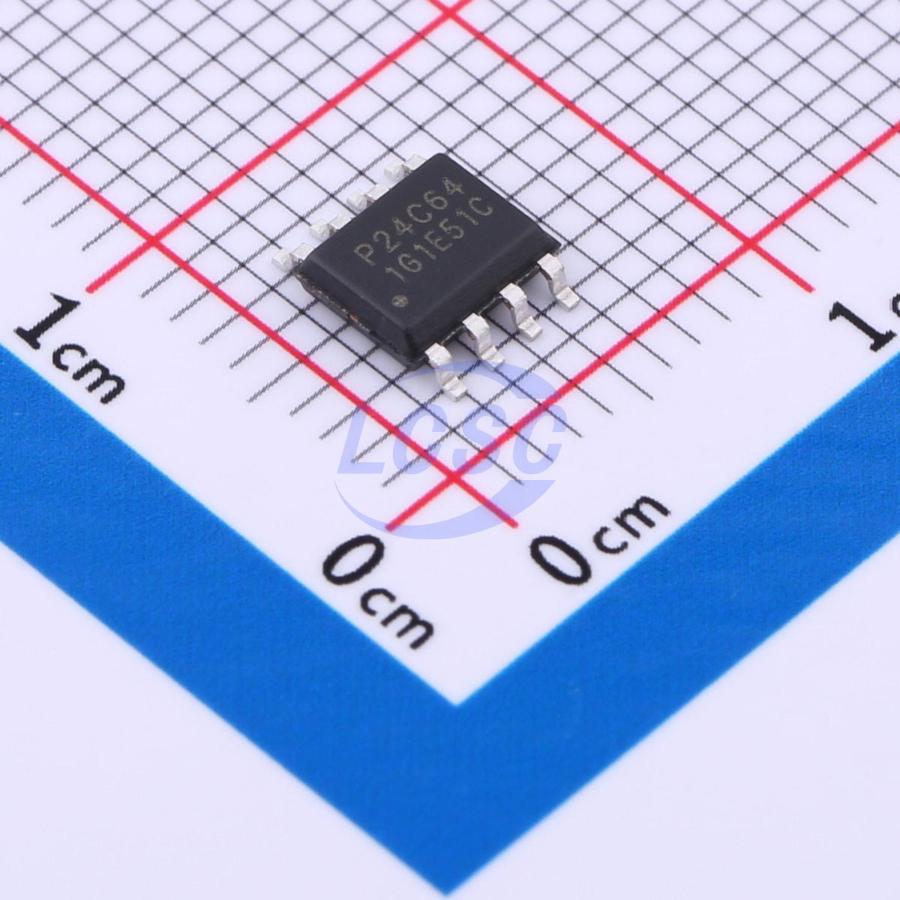

P24C64C-SSH-MIR
64Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
64Kbit I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,23,905 in stock
#C2885413
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.37 | ₹76.85 |
| 50+ | ₹12.25 | ₹612.50 |
| 150+ | ₹10.69 | ₹1,603.50 |
| 500+ | ₹9.51 | ₹4,755.00 |
| 2,500+ | ₹8.57 | ₹21,425.00 |
| 4,000+ | ₹8.11 | ₹32,440.00 |
5 × ₹15.37
₹76.85
excl. GST
₹90.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P24C64C-SSH-MIR
₹76.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The P24C64C is a 64-Kbit I²C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 8Kx8 bits, which is organized in 32-byte per page. P24C64C provides the following devices for different application.
Key features
- Single Supply Voltage and High Speed
- Minimum operating voltage down to 1.7V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 400uA, maximum
- Write current 1.0mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- 32 byte Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Additional Write Lockable Page
- Additional 128-bit Serial Number
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- HBM: 6KV
- Latch up Capability: +/-200mA (25℃ & 125℃)
- Package: PDIP, SOP, TSSOP, DFN/UDFN and SOT23-5
