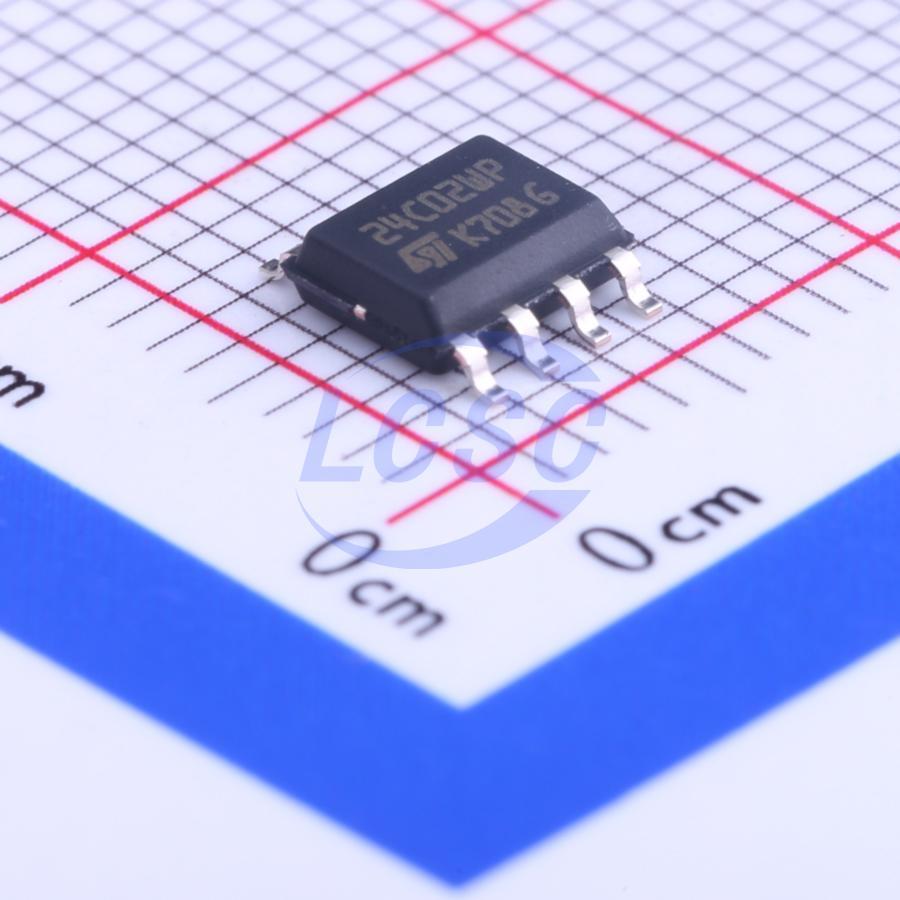

M24C02-WMN6TP

The M24C01(C02) is a 1(2)-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256)×8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V if the temperature is reduced to 0 ℃/85 ℃. All these devices operate with a clock frequency of 400 kHz.

Key features

• Compatible with all I²C bus modes: – 400 kHz – 100 kHz
• Memory array: – 1 Kbit (128 bytes) of EEPROM – 2 Kbit (256 bytes) of EEPROM – Page size: 16 bytes
• Single supply voltage: – M24C01/02-W: 2.5 V to 5.5 V M24C01/02-R: 1.8 V to 5.5 V M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
• Write: – Byte Write within 5 ms – Page Write within 5 ms
• Operating temperature range: from -40 ℃ up to +85 ℃
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-year data retention
• Packages: – RoHS compliant and halogen-free (ECOPACK®)
