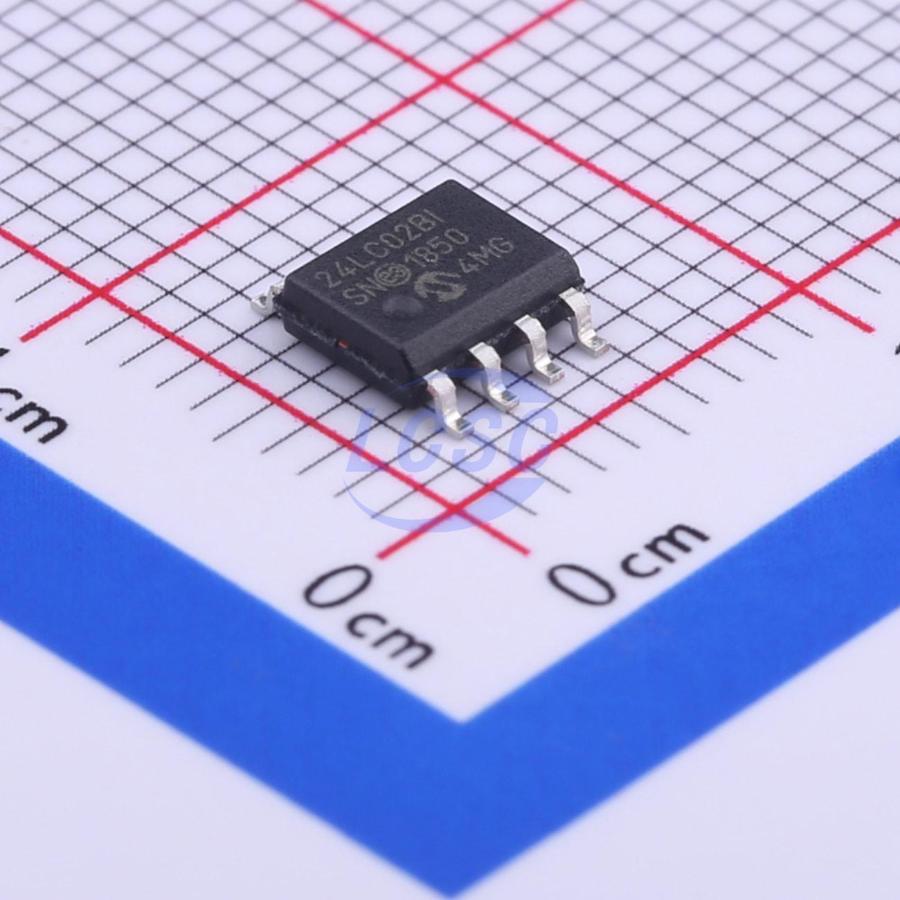

24LC02BT-I/SN
2Kbit 400kHz I2C SOIC-8 Memory RoHS
2K I²C Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,310 in stock
#C5453
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.12 | ₹195.60 |
| 50+ | ₹30.59 | ₹1,529.50 |
| 150+ | ₹26.94 | ₹4,041.00 |
| 500+ | ₹22.37 | ₹11,185.00 |
| 3,300+ | ₹20.35 | ₹67,155.00 |
| 6,600+ | ₹19.13 | ₹1,26,258.00 |
5 × ₹39.12
₹195.60
excl. GST
₹230.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24LC02BT-I/SN
₹195.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The 24AA02/24LC02B (24xx02*) is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24xx02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN and MSOP packages and is also available in the 5-lead SOT-23 and SC-70 packages.
Key features
- Single Supply with Operation down to 1.7V for 24AA02 Devices, 2.5V for 24LC02B Devices
- Low-Power CMOS Technology: - Read current 1 mA, max. - Standby current 1 μA, max. (l-temp)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger inputs for Noise Suppression
- Output Slope Control to eliminate Ground Bounce 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 3 ms, typical
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP, 5-lead SOT-23 and SC-70
- Pb-free and RoHS Compliant
- Temperature Ranges: - Industrial (l): -40℃ to +85℃ Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC025T-I/SN#C2062540MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 83 | ₹92.58 · 83 in stock | View |
 | 24LC02BH-I/SN#C615177MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹66.82 · 10 in stock | View |
 | 24AA025-I/SN#C615109MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 94 | ₹110.96 · 94 in stock | View |
 | 24LC02B-I/SN#C1348870MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 70 | ₹63.32 · 70 in stock | View |
 | 24AA02E48T-I/SN#C615605MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 163 | ₹105.59 · 163 in stock | View |
