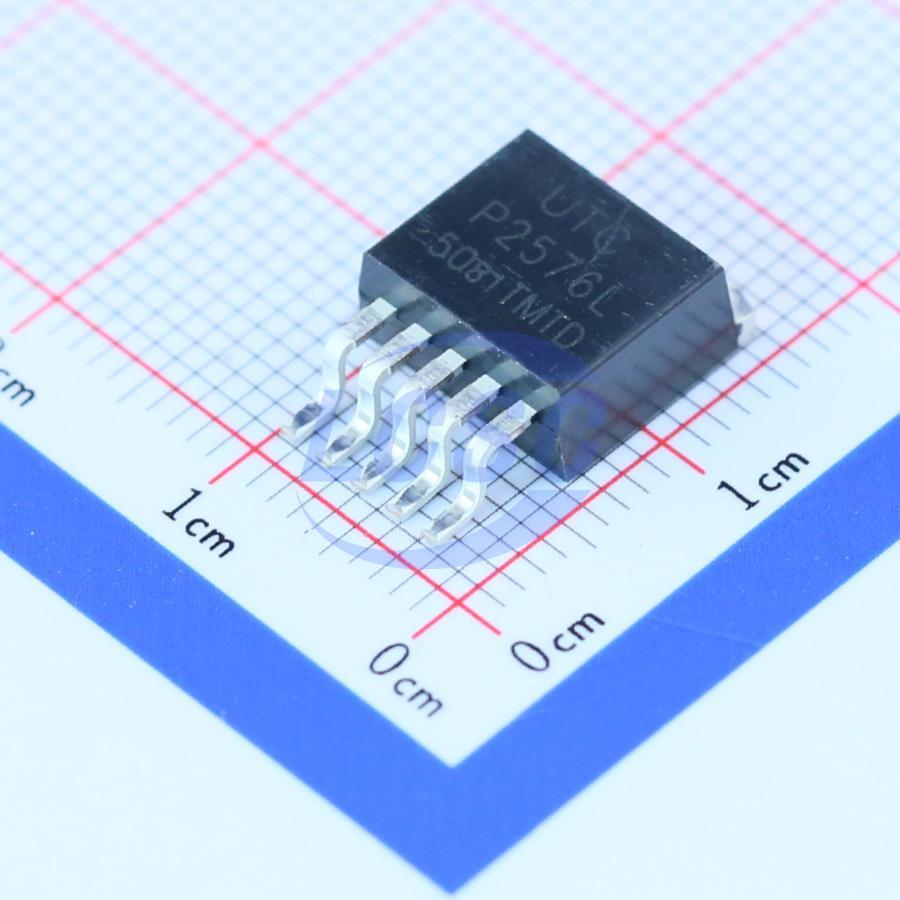

P2576L-50-TQ5-R
52kHz Step-down type 5V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators RoHS
TO-263-5ROHS CompliantActive
3A Step-Down Voltage Switching Regulator
- Manufacturer
- UTC
- Manufacturer part #
- P2576L-50-TQ5-R
- Store part #
- C111615
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,396 in stock
#C111615
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.57 | ₹73.57 |
| 10+ | ₹58.33 | ₹583.30 |
| 30+ | ₹51.58 | ₹1,547.40 |
| 100+ | ₹43.54 | ₹4,354.00 |
| 500+ | ₹39.84 | ₹19,920.00 |
| 800+ | ₹37.67 | ₹30,136.00 |
1 × ₹73.57
₹73.57
excl. GST
₹86.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
P2576L-50-TQ5-R
₹73.57 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 52kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Topology
- Buck
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 3A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.181 g
Overview
As a step-down (buck) switching regulator, the UTC P2576 provides drives 3A load. The UTC P2576 are simple because it only needs to use a minimum number of external components. Frequency compensation and a fixes-frequency oscillator are in it. UTC P2576 can perform with standard inductors, and simplifying the switch mode power supplies’ design. UTC P2576 guarantees output load conditions and ±10% on the oscillator frequency. Its external shutdown is included with 50μA standby current. As well as thermal shutdown for full protection under fault conditions, the output switch has cycle by cycle current limiting.
Key features
- Output Current 3A
- Input Voltage Range from 7V to 40V
- Requires 4 External Components
- Very High Efficiency
- TTL Shutdown
- Low Power Standby Mode
- Thermal Shutdown
- Current Limit Protection
- Internal Oscillator: 52 kHz Fixed Frequency
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2575S-5.0#C5349981HXY MOSFET · TO-263-5L | HXY MOSFET | TO-263-5L | 529 | ₹94.52 · 529 in stock | View |
 | LM2576D2T-005G#C70349onsemi · D2PAK-5 | onsemi | D2PAK-5 | 101 | ₹353.48 · 101 in stock | View |
 | LM2576D2TR4-5G#C70354onsemi · D2PAK-5 | onsemi | D2PAK-5 | 2,351 | ₹315.30 · 2,351 in stock | View |
 | LM2576S-5.0(UMW)#C347413UMW · TO-263-5 | UMW | TO-263-5 | 27,606 | ₹76.68 · 27,606 in stock | View |
 | LM2576S-5.0#C5279043TWGMC · TO-263-5 | TWGMC | TO-263-5 | 2,212 | ₹83.68 · 2,212 in stock | View |
