LittelfuseDatasheet (PDF)

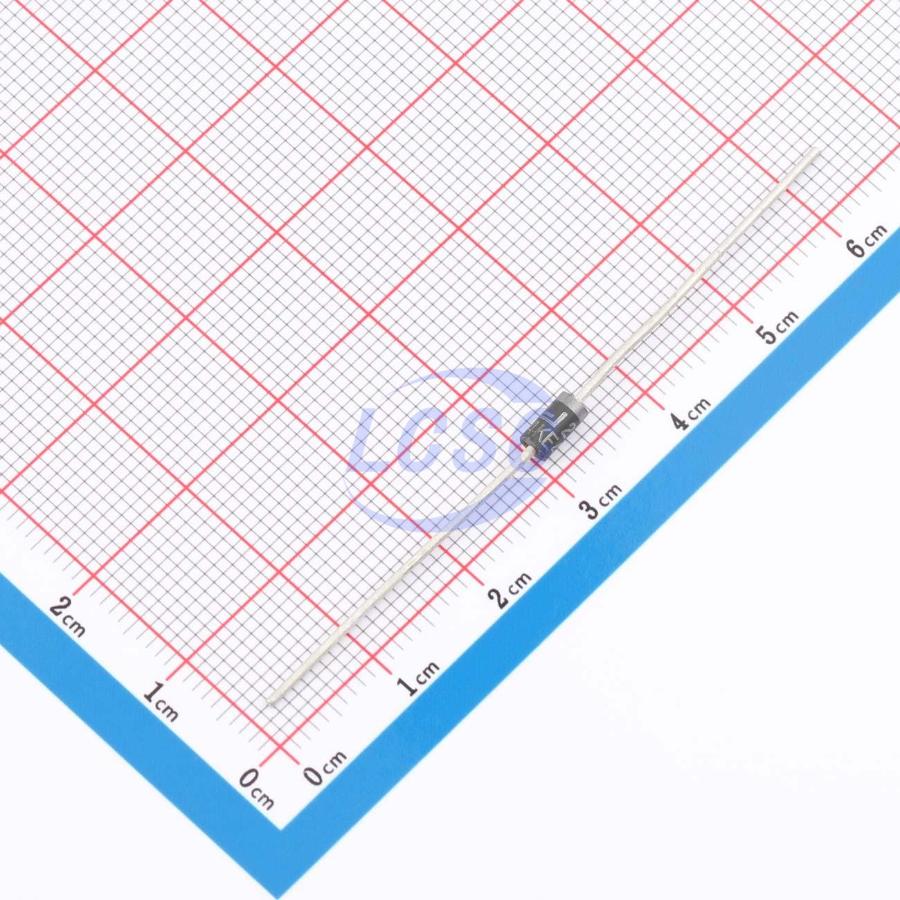

P4KE43A
59.3VC Clamp 6.9A Ipp TVS DIODE DO-41(DO-204AL)
DO-41(DO-204AL)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4KE43A
- Store part #
- C1978383
- Package / case
- DO-41(DO-204AL)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
329 in stock
#C1978383
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.30 | ₹50.30 |
| 10+ | ₹49.44 | ₹494.40 |
| 30+ | ₹48.79 | ₹1,463.70 |
| 100+ | ₹48.37 | ₹4,837.00 |
1 × ₹50.30
₹50.30
excl. GST
₹59.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4KE43A
₹50.30 for 1 + GST
Specifications
- Clamping Voltage
- 59.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 6.9A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
Overview
The P4KE Series is designed specifcally to protect sensitive electronic equipment from EFTs, ESD, and induced lightning transients.
Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications.
Key features
- 400W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
- Glass passivated chip junction in DO-41 Package
- Fast response time: typically less than 1.0ps from 0 Volts to VBR min
- Excellent clamping capability
- Typical failure mode is a short circuit
- Whisker test is conducted per Table 4a/4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
- Typical IR ≤ 1 μA for VBR min >12.6V
- High temperature refow soldering guaranteed: 260°C/30sec /0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- VBR @TJ = VBR @25°C × (1 + αT × (TJ - 25)) (αT:Temperature Coeffcient, typical value is 0.1 %)
- UL Recognized compound meeting fammability rating V-0
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pbfree and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P4KE43A#C434909CREATEK · DO-41 | CREATEK | DO-41 | 5 | ₹6.71 · 5 in stock | View |
| P4KE43A-B#C1666213Littelfuse · DO-41(DO-204AL) | Littelfuse | DO-41(DO-204AL) | On request | ₹9.10 · 0 in stock | View | |
| MAP4KE43A#C2635972MICROCHIP · DO-41(DO-204AL) | MICROCHIP | DO-41(DO-204AL) | On request | ₹1,303.21 · 0 in stock | View | |
| P4KE43AHR0G#C2444225Taiwan Semiconductor · DO-41(DO-204AL) | Taiwan Semiconductor | DO-41(DO-204AL) | On request | ₹15.17 · 0 in stock | View | |
| P4KE43AH#C3700238Taiwan Semiconductor · DO-204AL(DO-41) | Taiwan Semiconductor | DO-204AL(DO-41) | On request | ₹15.24 · 0 in stock | View | |
