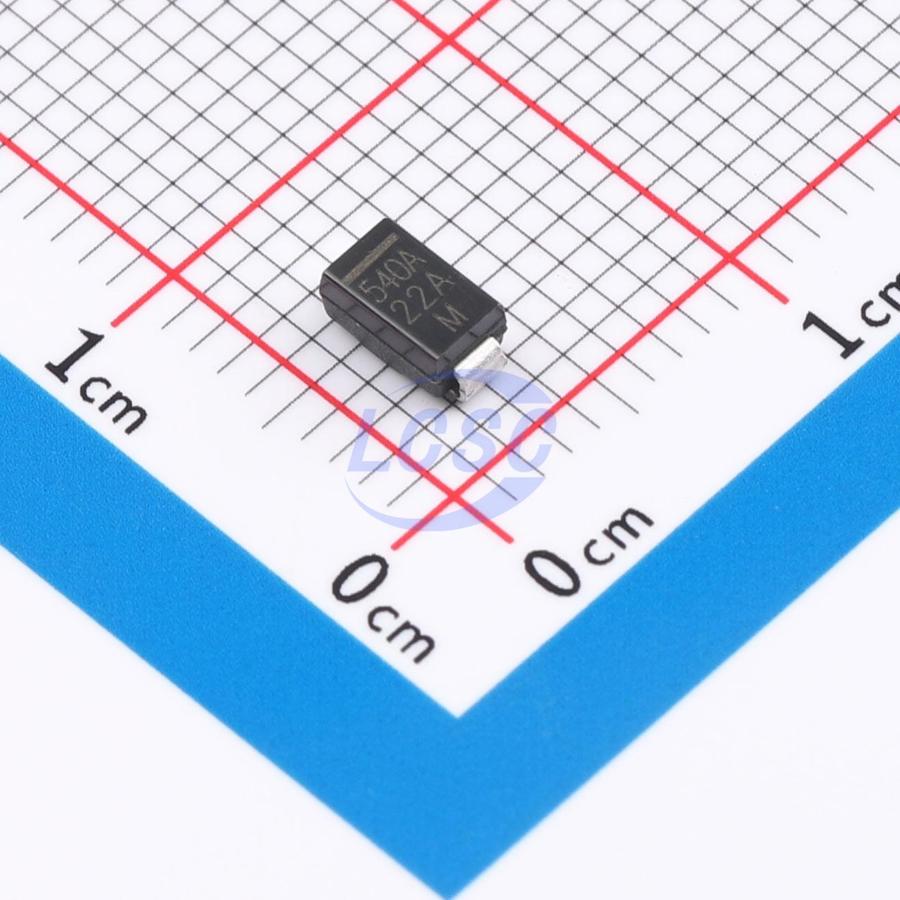

P4SMA540AHM3_B/H
740VC Clamp 410mA Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- P4SMA540AHM3_B/H
- Store part #
- C1979985
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C1979985
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.61 | ₹83.61 |
| 10+ | ₹82.54 | ₹825.40 |
| 30+ | ₹81.89 | ₹2,456.70 |
| 100+ | ₹81.03 | ₹8,103.00 |
1 × ₹83.61
₹83.61
excl. GST
₹98.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
P4SMA540AHM3_B/H
₹83.61 for 1 + GST
Specifications
- Clamping Voltage
- 740V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 410mA
- Peak Pulse Power Dissipation (Ppp)
- 300W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 513V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 459V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni- directional and bi- directional
- 400 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle): 0.01% (300 W above 91 V)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J- STD- 020, LF maximum peak of 260℃
- AEC- Q101 qualified available
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
