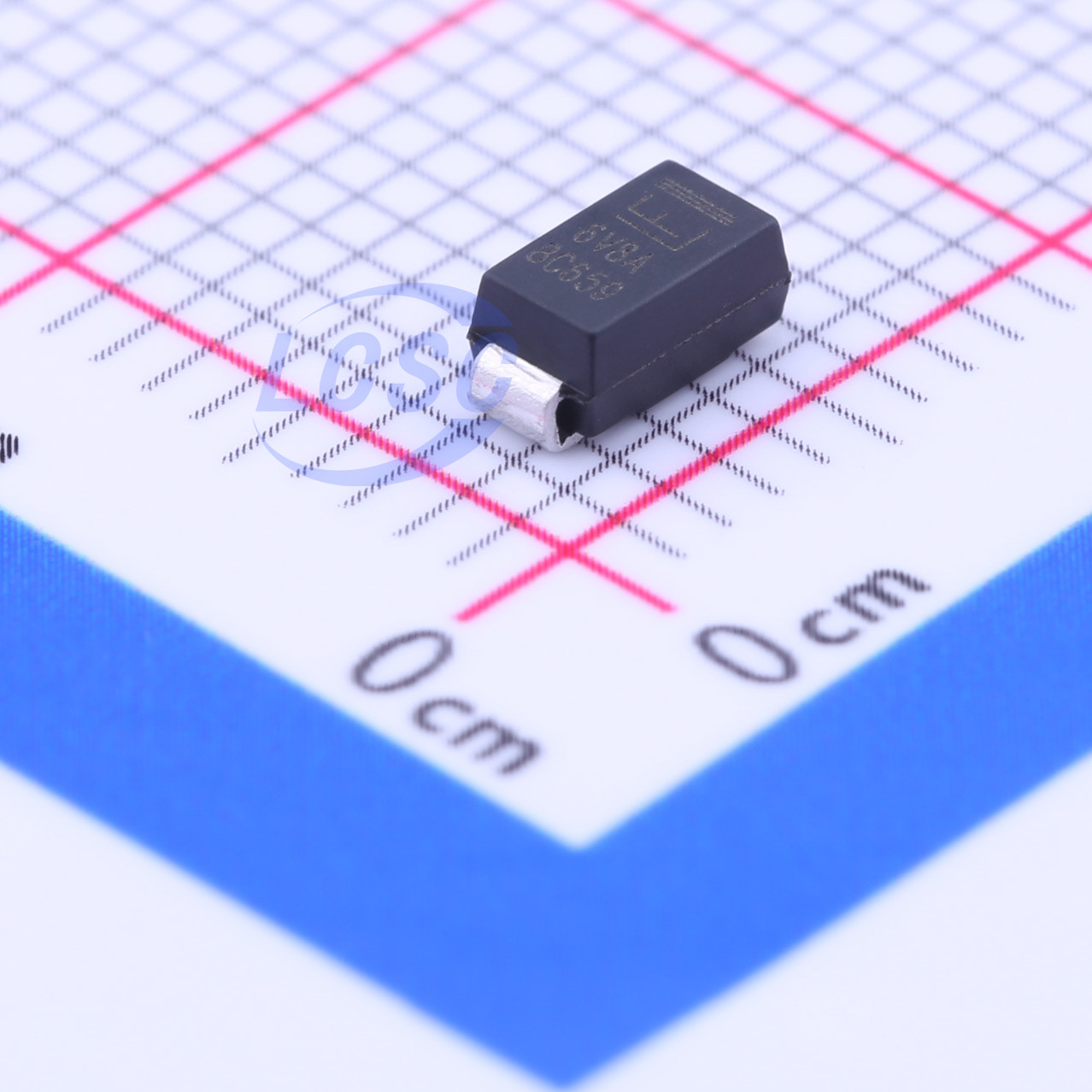

P4SMA6.8A
10.5VC Clamp 39A Ipp TVS DIODE DO-214AC
DO-214ACROHS3 CompliantActive
TVS DIODE 5.8VWM 10.5VC DO-214AC
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4SMA6.8A
- Store part #
- C151201
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C151201
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.58 | ₹77.90 |
| 50+ | ₹12.37 | ₹618.50 |
| 150+ | ₹10.76 | ₹1,614.00 |
| 500+ | ₹9.55 | ₹4,775.00 |
| 2,500+ | ₹8.59 | ₹21,475.00 |
| 5,000+ | ₹8.11 | ₹40,550.00 |
5 × ₹15.58
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA6.8A
₹77.90 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 39A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.45V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
The P4SMA series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 400W peak pulse power capability at 10/1000µs waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Typical |R less than 1µA when VBR min>12V
- Optimized surface mount footprint for minimal PCB space impact
- Low profile package
- Typical failure mode due to exceeding maximum ratings is a short circuit condition
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Built-in strain relief
- Fast response time: typically less than 1.0ps from 0V to BV min
- High temperature to reflow soldering guaranteed: 260°C/40sec
- pBR@TJ = VBR@25°C × (1+αT×(TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
- UL Recognized epoxy meeting flammability classification V-0
- Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
- Matte tin lead–free Plated
- Halogen-free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
