LittelfuseDatasheet (PDF)

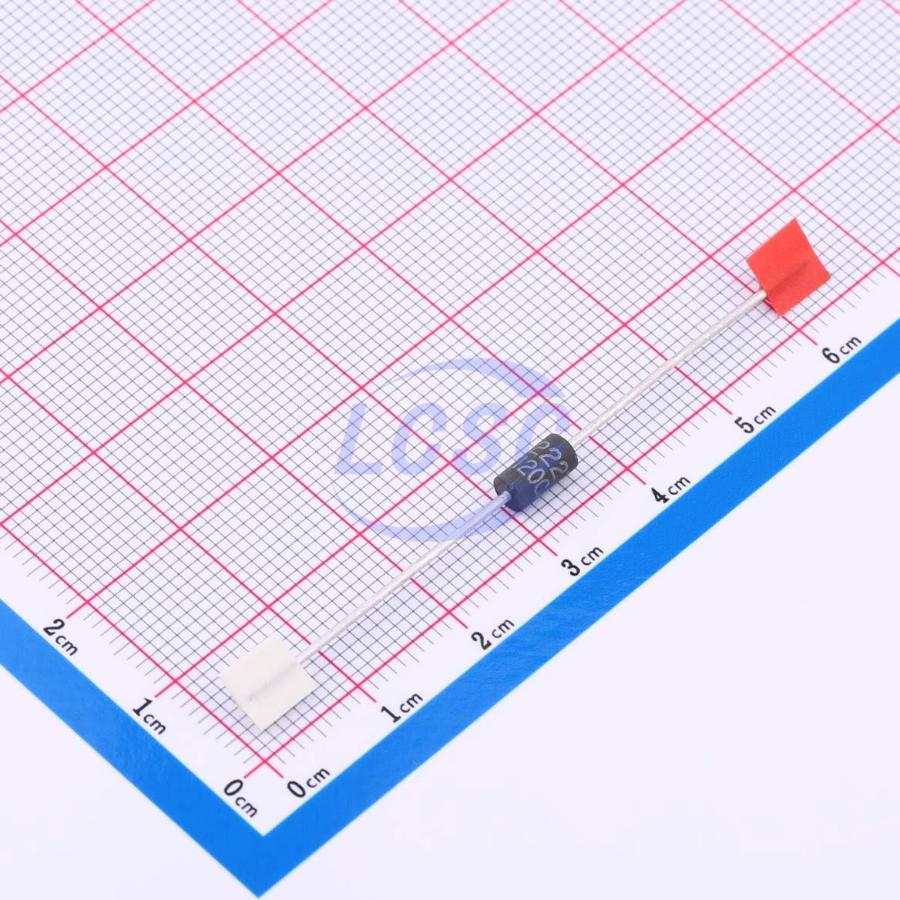

P6KE120CA
165VC Clamp 3.7A Ipp TVS DIODE DO-15
DO-15ROHS3 CompliantActive
TVS DIODE 102VWM 165VC DO-15
- Manufacturer
- Littelfuse
- Manufacturer part #
- P6KE120CA
- Store part #
- C428845
- Package / case
- DO-15
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
945 in stock
#C428845
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.29 | ₹161.45 |
| 50+ | ₹25.64 | ₹1,282.00 |
| 150+ | ₹22.78 | ₹3,417.00 |
| 500+ | ₹19.22 | ₹9,610.00 |
| 2,500+ | ₹17.64 | ₹44,100.00 |
| 4,000+ | ₹16.68 | ₹66,720.00 |
5 × ₹32.29
₹161.45
excl. GST
₹190.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6KE120CA
₹161.45 for 5 + GST
Specifications
- Clamping Voltage
- 165V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 3.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 114V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 102V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.3 g
Overview
The P6KE Series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- Compatible with high temperature refow soldering (260°C/40 s)
- VBR@TJ = VBR@25°C x (1+αT x (T - 25)) (αT:Temperature Coeffcient, typical value is 0.1%)
- UL Recognized epoxy meeting fammability classifcation V-0
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal fnish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
- 600W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Glass passivated chip junction in DO-15 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over-specifed voltage or current
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
- Typical IR less than 1μA when VBR min>12V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6KE120CA#C3034468Liown · DO-15 | Liown | DO-15 | 32 | ₹8.73 · 32 in stock | View |
 | P6KE120CA#C294000DOWO · DO-15 | DOWO | DO-15 | 1,680 | ₹8.65 · 1,680 in stock | View |
 | P6KE120CA#C434976CREATEK · DO-15 | CREATEK | DO-15 | 360 | ₹7.10 · 360 in stock | View |
 | P6KE120CA#C499766SMC · DO-15 | SMC | DO-15 | 30 | ₹7.54 · 30 in stock | View |
| SA100CA#C1979493Littelfuse · DO-15(DO-204AC) | Littelfuse | DO-15(DO-204AC) | 3,920 | ₹51.20 · 3,920 in stock | View | |
