DIODESDatasheet (PDF)

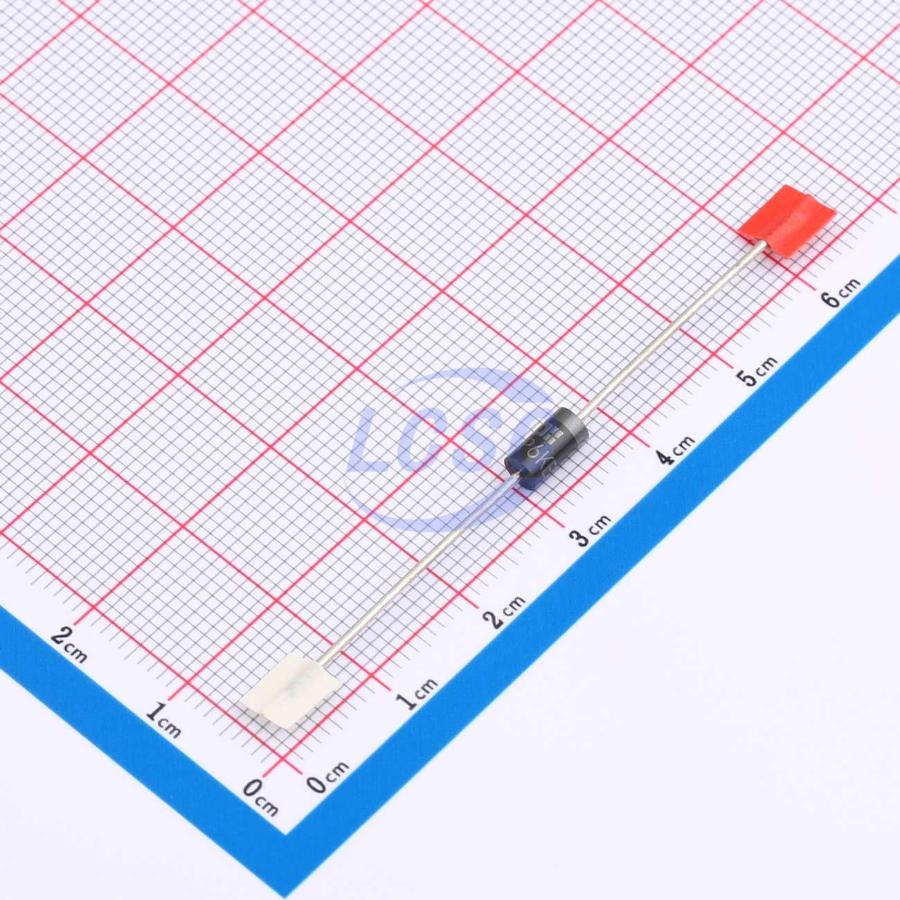

P6KE24A-T
33.2VC Clamp 18A Ipp TVS DIODE DO-15
DO-15ROHS CompliantDiscontinued
TVS DIODE 20.5VWM 33.2VC DO-15
- Manufacturer
- DIODES
- Manufacturer part #
- P6KE24A-T
- Store part #
- C3704022
- Package / case
- DO-15
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3704022
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.42 | ₹97.10 |
| 50+ | ₹19.01 | ₹950.50 |
| 150+ | ₹18.73 | ₹2,809.50 |
| 500+ | ₹18.46 | ₹9,230.00 |
5 × ₹19.42
₹97.10
excl. GST
₹114.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per box
P6KE24A-T
₹97.10 for 5 + GST
Specifications
- Clamping Voltage
- 33.2V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 18A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 22.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 20.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.449 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- Voltage Range: 6.8V to 400V
- Constructed with Glass Passivated Die
- Uni- and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6KE24A#C5142811SUNMATE Elec · DO-15 | SUNMATE Elec | DO-15 | On request | ₹6.87 · 0 in stock | View |
 | P6KE24A#C493165SMC · DO-15 | SMC | DO-15 | 2,810 | ₹6.96 · 2,810 in stock | View |
 | P6KE24A#C2848300LGE · DO-15 | LGE | DO-15 | 2,820 | ₹8.52 · 2,820 in stock | View |
 | P6KE24A-TP#C1974815MCC · DO-15 | MCC | DO-15 | 145 | ₹17.05 · 145 in stock | View |
 | P6KE24A#C434953CREATEK · DO-15 | CREATEK | DO-15 | 25 | ₹7.53 · 25 in stock | View |
