LittelfuseDatasheet (PDF)

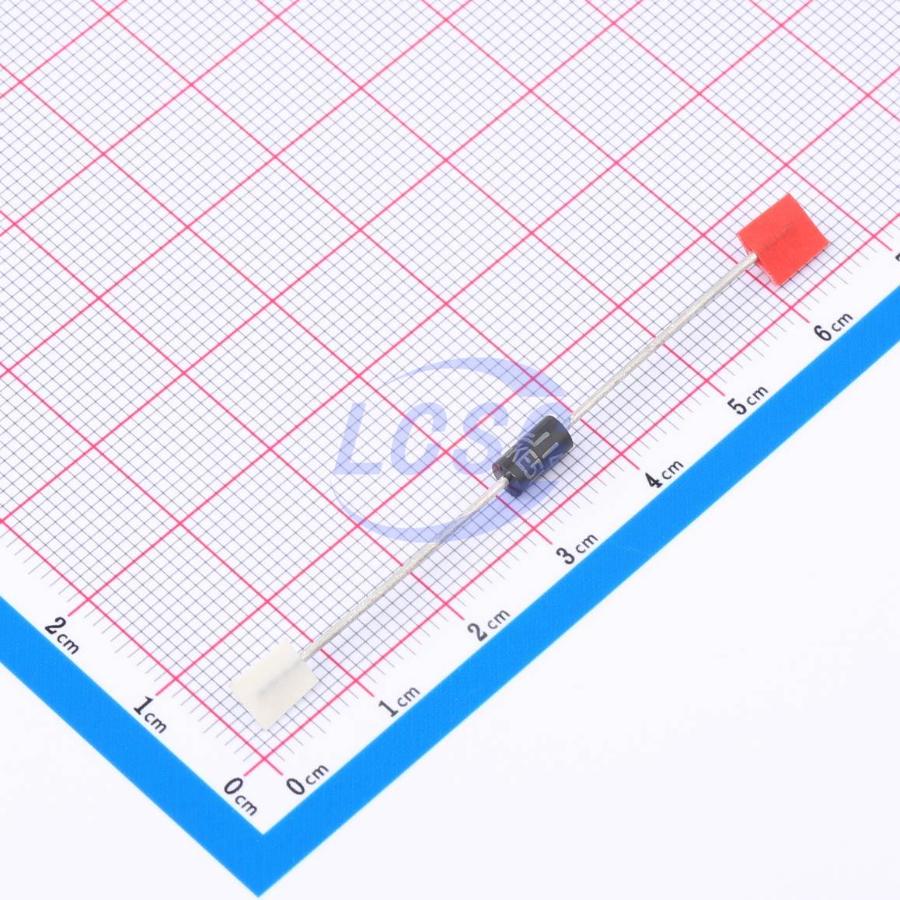

P6KE510CA
760VC Clamp 1A Ipp TVS DIODE DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
TVS DIODE 468VWM 760VC DO-204AC(DO-15)
- Manufacturer
- Littelfuse
- Manufacturer part #
- P6KE510CA
- Store part #
- C223969
- Package / case
- DO-204AC(DO-15)
- Category
- TVS Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C223969
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.86 | ₹55.86 |
| 10+ | ₹44.33 | ₹443.30 |
| 30+ | ₹39.56 | ₹1,186.80 |
| 100+ | ₹33.25 | ₹3,325.00 |
| 500+ | ₹30.64 | ₹15,320.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹55.86
₹55.86
excl. GST
₹65.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6KE510CA
₹55.86 for 1 + GST
Specifications
- Clamping Voltage
- 760V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 1A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 577.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 468V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 600W peak pulse capability at 10/1000us waveform, repetition rate (duty cycles): 0.01%
- Glass passivated chip junction in DO - 15 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specified voltage or current
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical LR less than 1μA when VBR min>12V
- Compatible with high temperature reflow soldering (260℃ / 30s)
- UL Recognized epoxy meeting flammability classification V = 0
- Matter tin lead - free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb free and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
