DIODESDatasheet (PDF)

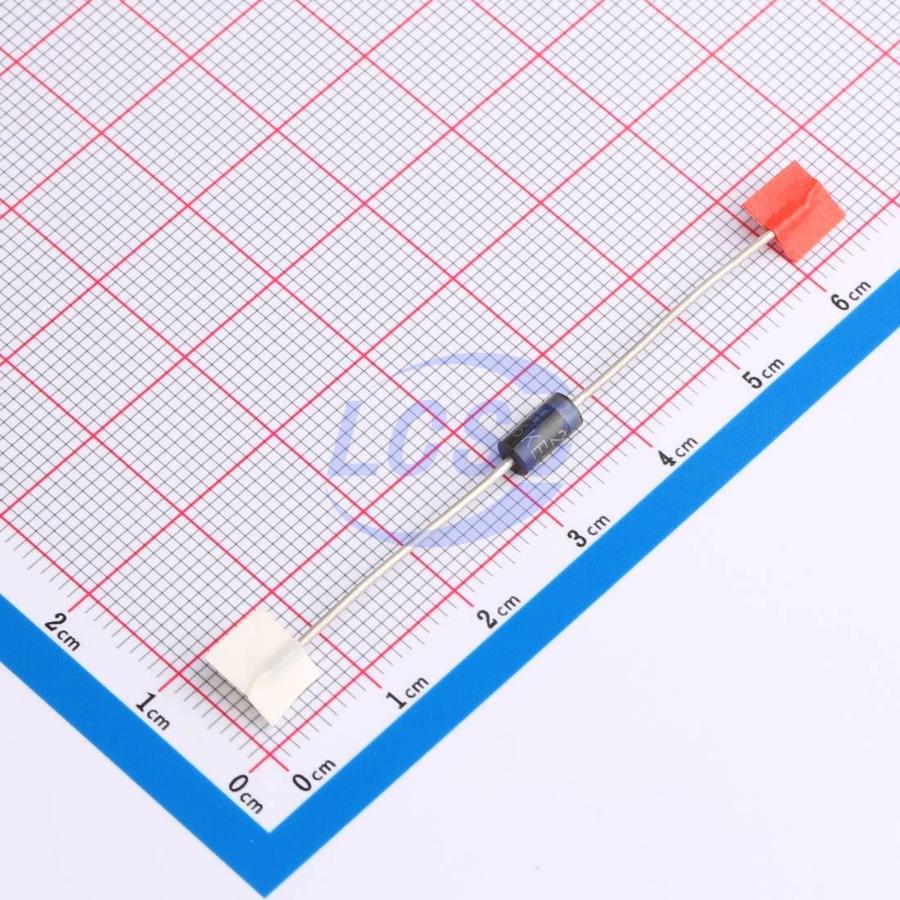

P6KE51A-T
70.1VC Clamp 8.6A Ipp TVS DIODE DO-15
DO-15ROHS CompliantDiscontinued
TVS DIODE 43.6VWM 70.1VC DO-15
- Manufacturer
- DIODES
- Manufacturer part #
- P6KE51A-T
- Store part #
- C1974617
- Package / case
- DO-15
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C1974617
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.11 | ₹170.55 |
| 50+ | ₹27.13 | ₹1,356.50 |
| 150+ | ₹24.16 | ₹3,624.00 |
| 500+ | ₹20.43 | ₹10,215.00 |
5 × ₹34.11
₹170.55
excl. GST
₹201.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6KE51A-T
₹170.55 for 5 + GST
Specifications
- Clamping Voltage
- 70.1V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 8.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 53.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 43.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.553 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- Voltage Range: 6.8V to 400V
- Constructed with Glass Passivated Die
- Uni- and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6KE51A#C10192RUILON · DO-15 | RUILON | DO-15 | 290 | ₹12.34 · 290 in stock | View |
 | P6KE51CA-T#C460924DIODES · DO-15 | DIODES | DO-15 | 5 | ₹59.46 · 5 in stock | View |
 | P6KE51A#C3719751Littelfuse · DO-204AC(DO-15) | Littelfuse | DO-204AC(DO-15) | 1,385 | ₹33.39 · 1,385 in stock | View |
 | P6KE51A#C294167DOWO · DO-15 | DOWO | DO-15 | 1,540 | ₹8.63 · 1,540 in stock | View |
 | P6KE51A-E3/54#C1975278VISHAY · DO-15(DO-204AC) | VISHAY | DO-15(DO-204AC) | 3,225 | ₹27.24 · 3,225 in stock | View |
