VISHAYDatasheet (PDF)

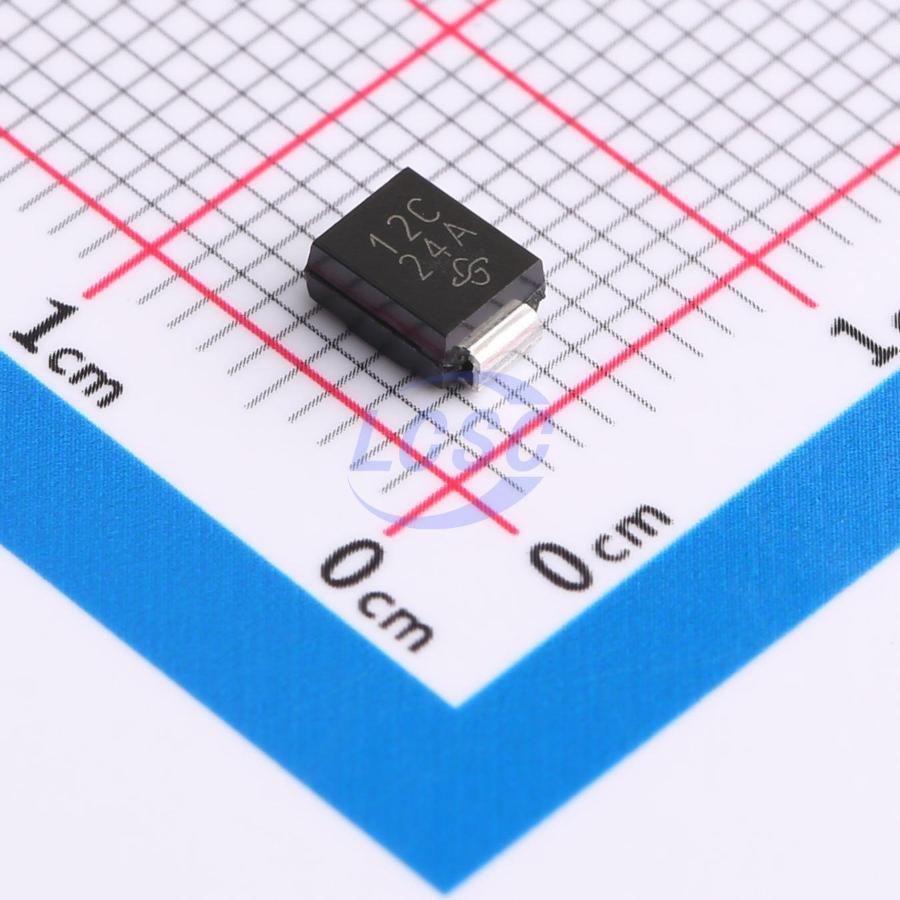

P6SMB12CA-E3/52
16.7VC Clamp 35.9A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 10.2VWM 16.7VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- P6SMB12CA-E3/52
- Store part #
- C3700934
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C3700934
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.58 | ₹242.90 |
| 50+ | ₹41.00 | ₹2,050.00 |
| 150+ | ₹37.75 | ₹5,662.50 |
| 750+ | ₹33.70 | ₹25,275.00 |
| 2,250+ | ₹31.88 | ₹71,730.00 |
| 5,250+ | ₹30.80 | ₹1,61,700.00 |
5 × ₹48.58
₹242.90
excl. GST
₹286.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
P6SMB12CA-E3/52
₹242.90 for 5 + GST
Specifications
- Clamping Voltage
- 16.7V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 35.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 11.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 10.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.222 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- 600 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM6T12CA#C133697ST · SMB(DO-214AA) | ST | SMB(DO-214AA) | 2,400 | ₹28.14 · 2,400 in stock | View |
 | P6SMB12CA#C2936109Littelfuse · DO-214AA | Littelfuse | DO-214AA | 1,030 | ₹19.18 · 1,030 in stock | View |
 | SZP6SMB12CAT3G#C1975757Littelfuse · SMB | Littelfuse | SMB | 195 | ₹131.03 · 195 in stock | View |
 | P6SMB12CA#C5764736YFW · DO-214AA | YFW | DO-214AA | 50 | ₹3.76 · 50 in stock | View |
 | P6SMB12CA#C53202393Brightking · SMB | Brightking | SMB | 1,750 | ₹11.87 · 1,750 in stock | View |
