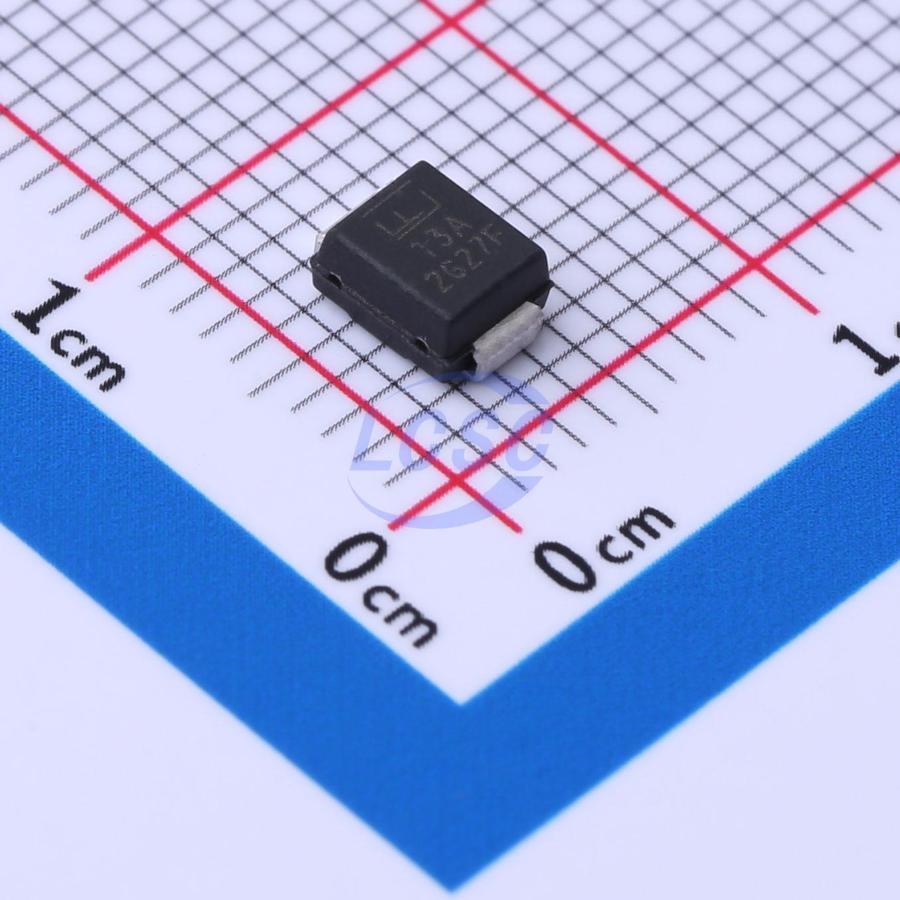

P6SMB13A

The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 1μA when VBR min>12V
• Optimized surface mount footprint for minimal PCB space impact
• Low profile package
• Typical failure mode due to exceeding maximum ratings is a short circuit condition
• Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
• IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
• EFT protection of data lines in accordance with IEC 61000-4-4
• Built-in strain relief
• Fast response time: typically less than 1.0ps from 0V to VBR min
• High temperature to reflow soldering guaranteed: 260°C/30sec
• VBR @ T = VBR @25°C x (1+αT x (T - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
• UL Recognized compound meeting flammability classification V-0
• Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2ND level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
• UL Recognized to ANSI/UL 497B: Protectors for Data Communications and FireAlarm Circuits.
