JSCJDatasheet (PDF)

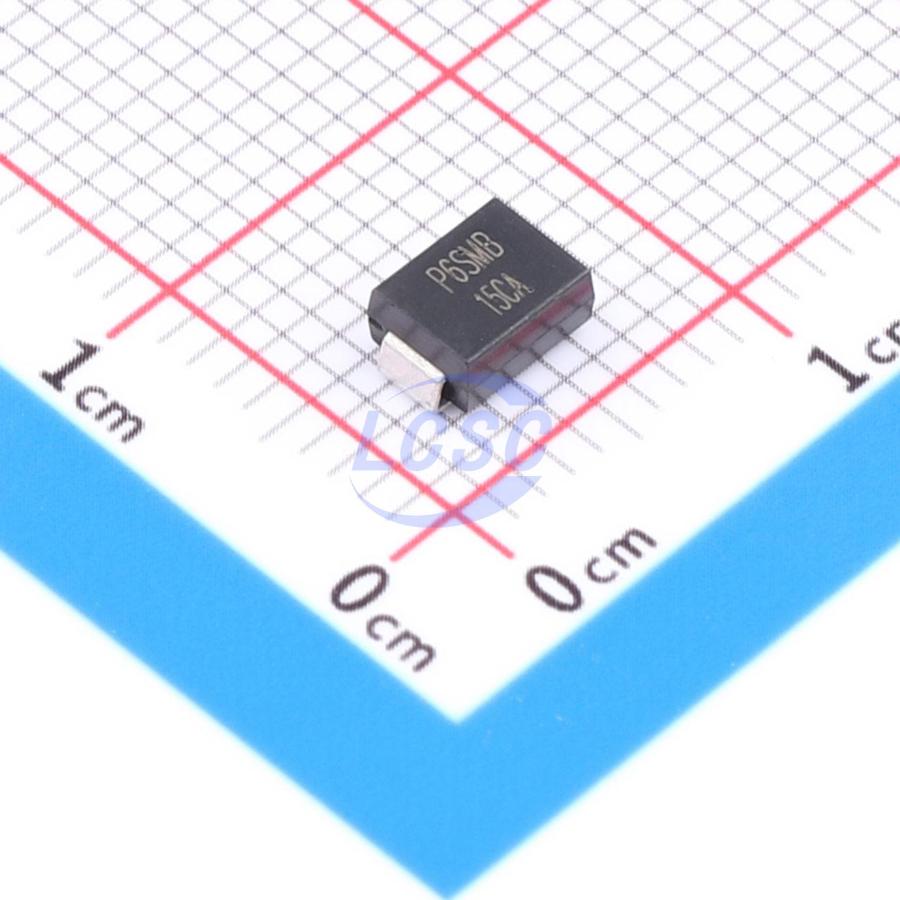

P6SMB15CA
21.2VC Clamp 28.3A Ipp TVS DIODE SMBG
SMBGROHS CompliantActive
- Manufacturer
- JSCJ
- Manufacturer part #
- P6SMB15CA
- Store part #
- C5294437
- Package / case
- SMBG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C5294437
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.64 | ₹86.40 |
| 100+ | ₹6.79 | ₹679.00 |
| 300+ | ₹5.86 | ₹1,758.00 |
| 3,000+ | ₹5.17 | ₹15,510.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹8.64
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB15CA
₹86.40 for 10 + GST
Specifications
- Clamping Voltage
- 21.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 28.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.25V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12.8V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.204 g
Overview
Applications
- Clamping Voltage
Key features
- P600W VRWM 5.8V - 513V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ13CA#C5294284JSCJ · SMBG | JSCJ | SMBG | 980 | ₹10.27 · 980 in stock | View |
 | CJSMBJ13CA#C7499159JSCJ · SMBG | JSCJ | SMBG | On request | ₹7.63 · 0 in stock | View |
 | P6SMB16CA#C5294435JSCJ · SMBG | JSCJ | SMBG | 2,340 | ₹8.92 · 2,340 in stock | View |
 | SMBJ12CA#C2961201JSCJ · SMBG | JSCJ | SMBG | On request | ₹10.97 · 0 in stock | View |
 | CJSMBJ12CA#C7499158JSCJ · SMBG | JSCJ | SMBG | 4,620 | ₹10.81 · 4,620 in stock | View |
