VISHAYDatasheet (PDF)

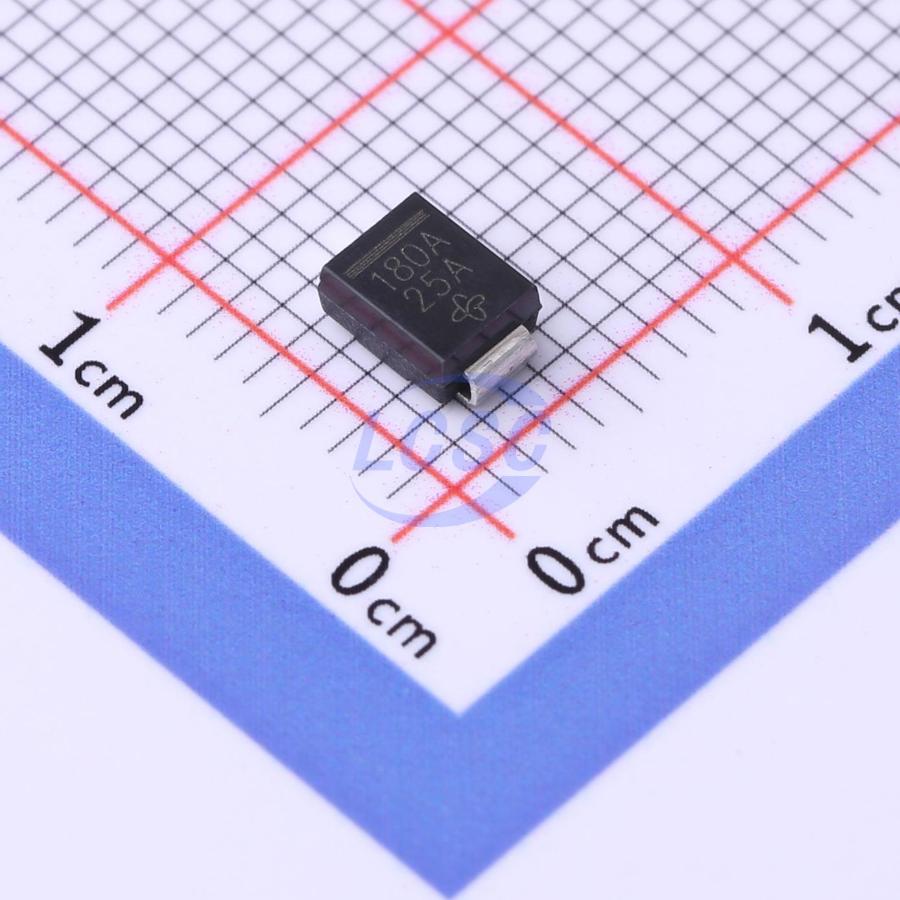

P6SMB180A-E3/52
246VC Clamp 2.4A Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- P6SMB180A-E3/52
- Store part #
- C3151643
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C3151643
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.87 | ₹124.35 |
| 50+ | ₹20.00 | ₹1,000.00 |
| 150+ | ₹17.91 | ₹2,686.50 |
| 750+ | ₹14.72 | ₹11,040.00 |
| 2,250+ | ₹13.56 | ₹30,510.00 |
| 5,250+ | ₹12.87 | ₹67,567.50 |
5 × ₹24.87
₹124.35
excl. GST
₹146.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
P6SMB180A-E3/52
₹124.35 for 5 + GST
Specifications
- Clamping Voltage
- 246V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 2.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 171V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 154V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional RoHS COMPLIANT
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate HALOGEN FREE (duty cycle): 0.01 % Available
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6SMB180A#C7427906NH · SMB | NH | SMB | 240 | ₹7.59 · 240 in stock | View |
| TPSMB180A#C1975868Littelfuse · DO-214AA(SMBJ) | Littelfuse | DO-214AA(SMBJ) | 50 | ₹26.94 · 50 in stock | View | |
 | SMBJ154A-TR#C672214ST · SMB(DO-214AA) | ST | SMB(DO-214AA) | 440 | ₹19.24 · 440 in stock | View |
 | P6SMB170A-E3/52#C1973866VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 250 | ₹30.36 · 250 in stock | View |
 | P6SMB180A(MS)#C20539004MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 60 | ₹7.63 · 60 in stock | View |
