VISHAYDatasheet (PDF)

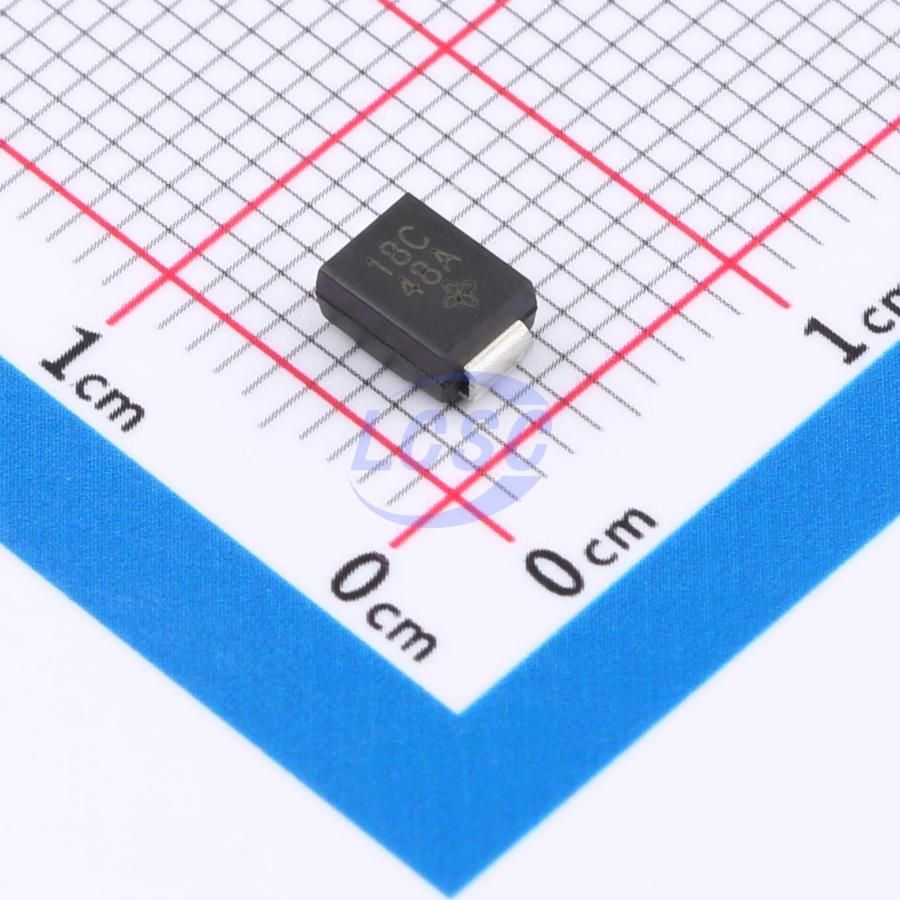

P6SMB18CAHE3_A/H
25.2VC Clamp 23.8A@10/1000us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantDiscontinued
TVS DIODE 15.3VWM 25.2VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- P6SMB18CAHE3_A/H
- Store part #
- C1981423
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,735 in stock
#C1981423
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.41 | ₹127.05 |
| 50+ | ₹22.15 | ₹1,107.50 |
| 150+ | ₹20.74 | ₹3,111.00 |
| 750+ | ₹19.00 | ₹14,250.00 |
| 2,250+ | ₹18.22 | ₹40,995.00 |
| 5,250+ | ₹17.75 | ₹93,187.50 |
5 × ₹25.41
₹127.05
excl. GST
₹149.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
P6SMB18CAHE3_A/H
₹127.05 for 5 + GST
Specifications
- Clamping Voltage
- 25.2V
- Peak Pulse Current (Ipp)
- 23.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 21V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement RoHS
- Glass passivated chip junction COMPLIANT HALOGEN
- Available in unidirectional and bidirectional FREE Available
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
