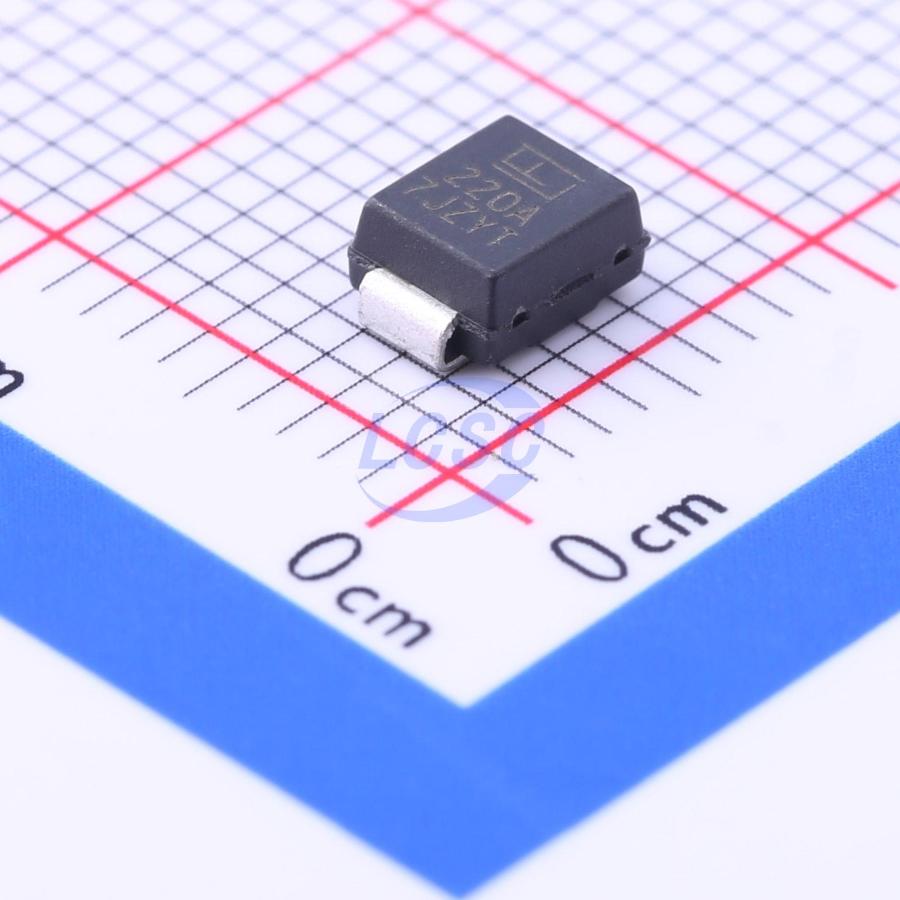

P6SMB220A

The P6SMB series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• Excellent clamping capability
• Low incremental surge resistance
• Typical |R less than 1 μΔ when VBR min > 12V
• For surface mounted applications to optimize board space
• Low profle package
• Typical failure mode is short from over - specifed voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4 and 4c
• IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000 - 4 - 2
• EFT protection of data lines in accordance with IEC 61000 - 4 - 4
• Built - in strain relief
• Fast response time: typically less than 1.0ps from 0V to VBR min
• 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
• High temperature to refow soldering guaranteed: 260°C/40sec
• V @ T = V @25°C x (1 + αT x (T - 25)) (αT:Temperature Coeffcient, typical value is 0.1 %)
• UL Recognized epoxy meeting fammability rating V - 0
• Meet MSL level1, per J - STD - 020, LF maximun peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb - free E3 means 2nd level interconnect is Pb - free and the terminal fnish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
