JSCJDatasheet (PDF)

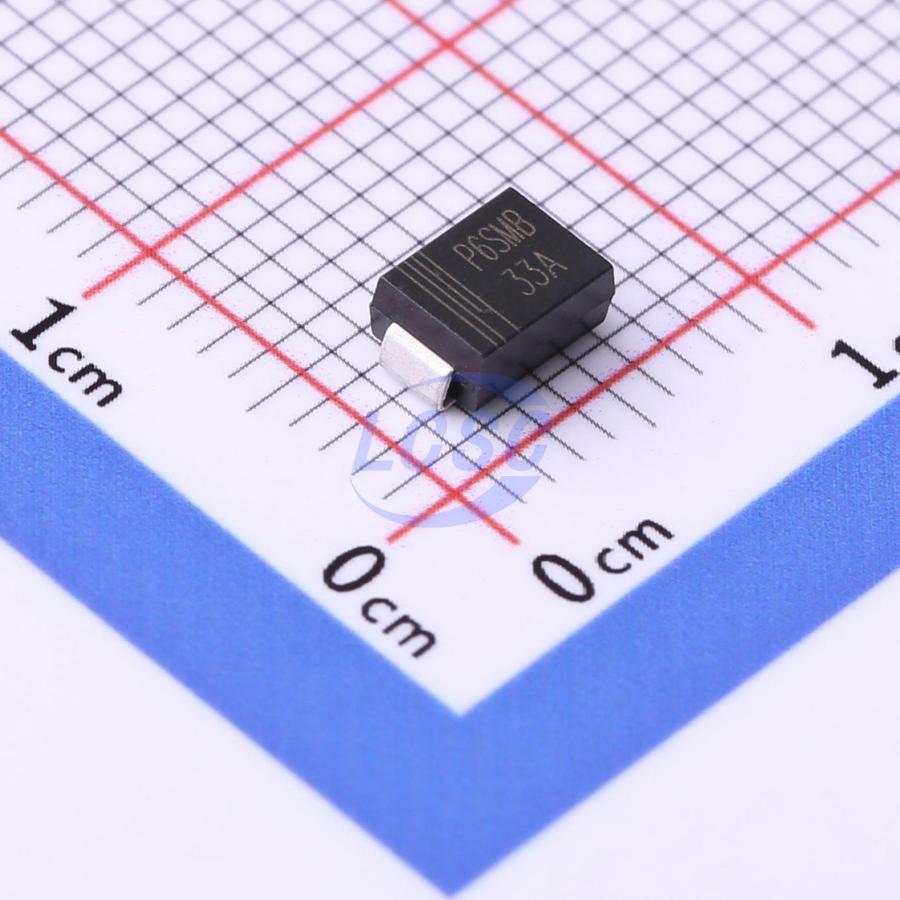

P6SMB33A
45.7VC Clamp 13.1A@10/1000us Ipp TVS DIODE SMBG
SMBGROHS CompliantActive
TVS DIODE 28.2VWM 45.7VC SMBG
- Manufacturer
- JSCJ
- Manufacturer part #
- P6SMB33A
- Store part #
- C1509124
- Package / case
- SMBG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,180 in stock
#C1509124
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.72 | ₹117.20 |
| 100+ | ₹9.80 | ₹980.00 |
| 300+ | ₹8.85 | ₹2,655.00 |
| 3,000+ | ₹8.14 | ₹24,420.00 |
| 6,000+ | ₹7.57 | ₹45,420.00 |
| 9,000+ | ₹7.28 | ₹65,520.00 |
10 × ₹11.72
₹117.20
excl. GST
₹138.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB33A
₹117.20 for 10 + GST
Specifications
- Clamping Voltage
- 45.7V
- Peak Pulse Current (Ipp)
- 13.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.65V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
Applications
- Clamping Voltage
Key features
- P600W VRWM 5.8V - 513V
- Glass passivated chip
