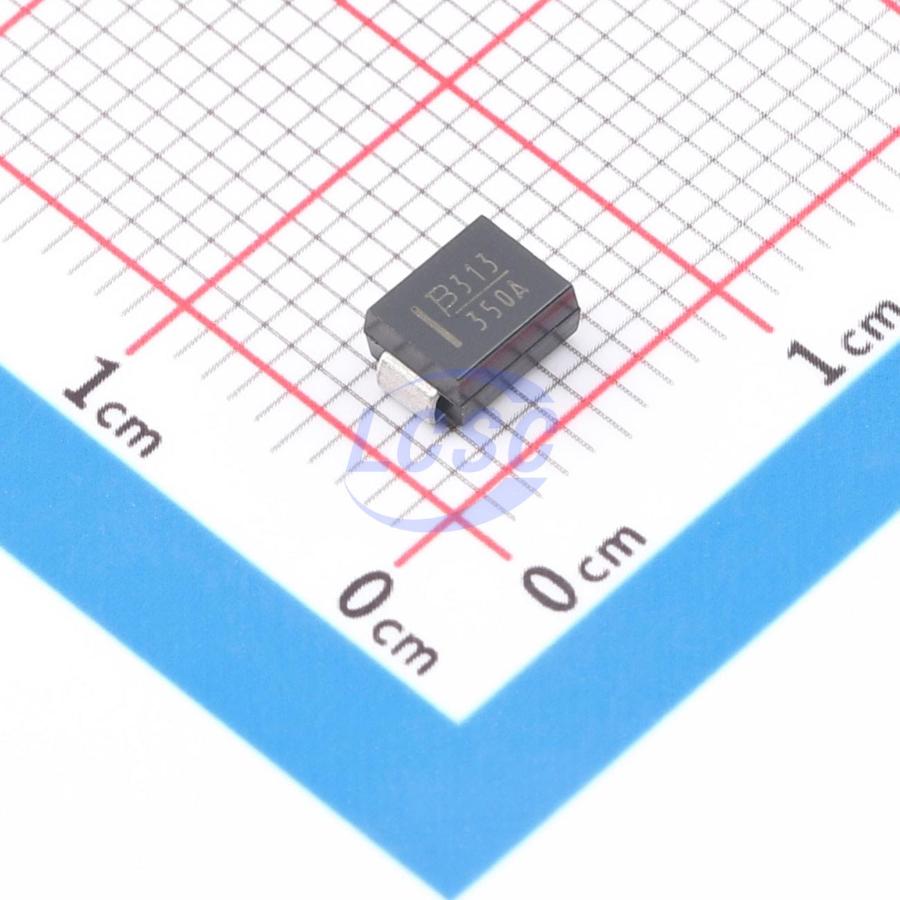

P6SMB350A
626.6VC Clamp 6.5A@8/20us Ipp TVS DIODE SMB(DO-214AA)
- Manufacturer
- BOURNS
- Manufacturer part #
- P6SMB350A
- Store part #
- C1973419
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1973419
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.00 | ₹92.00 |
| 10+ | ₹90.49 | ₹904.90 |
| 30+ | ₹89.63 | ₹2,688.90 |
| 100+ | ₹88.77 | ₹8,877.00 |
1 × ₹92.00
₹92.00
excl. GST
₹108.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB350A
₹92.00 for 1 + GST
Specifications
- Clamping Voltage
- 626.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 368V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 300V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. The Transient Voltage Suppressor series offers a choice of Breakdown Voltages from 6.8 V up to 550 V. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 to Minimum Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Key features
- RoHS compliant* and halogen free**
- Surface Mount SMB package
- Breakdown Voltage: 6.8 to 550 volts
- Peak Pulse Power: 600 watts
- Typical temperature coefficient: ∆VBR = 0.1 % x VBR @ 25 °C x ∆T
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TVP06B381A-G#C2446609Comchip · SMB(DO-214AA) | Comchip | SMB(DO-214AA) | On request | ₹57.35 · 0 in stock | View | |
| P6SMB380A#C3711804Meritek · DO-214AA(SMB) | Meritek | DO-214AA(SMB) | On request | ₹33.43 · 0 in stock | View | |
| TVP06B381A-HF#C20186608Comchip · DO-214AA(SMB) | Comchip | DO-214AA(SMB) | On request | ₹96.86 · 0 in stock | View | |
