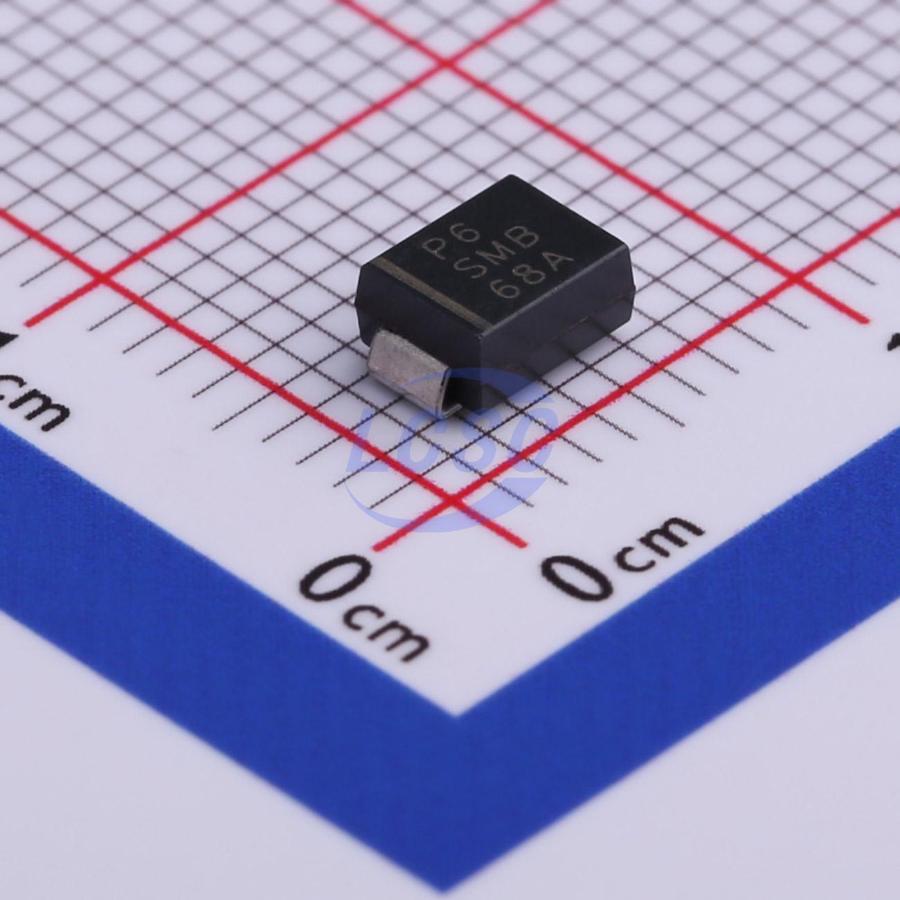

P6SMB68A
92VC Clamp 6.6A Ipp TVS DIODE DO-214AA(SMB)
TVS DIODE 58.1VWM 92VC DO-214AA(SMB)
- Manufacturer
- Yint
- Manufacturer part #
- P6SMB68A
- Store part #
- C484352
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C484352
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.50 | ₹115.00 |
| 100+ | ₹8.89 | ₹889.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
| 2,500+ | ₹6.62 | ₹16,550.00 |
| 5,000+ | ₹5.83 | ₹29,150.00 |
| 10,000+ | ₹5.44 | ₹54,400.00 |
10 × ₹11.50
₹115.00
excl. GST
₹135.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
P6SMB68A
₹115.00 for 10 + GST
Specifications
- Clamping Voltage
- 92V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 64.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 58.1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.217 g
Overview
The P6SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The P6SMB series is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer Applications.
Applications
- TVS devices are ideal for the protection of interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Case: DO-214AA/SMB
- For surface mounted applications in order to optimize board space.
- Polarity: Color band denoted positive end (cathode) except Bidirectional.
- Typical failure mode is short from over-specified voltage or current
- Terminal: Solder plated, solderable per MIL-STD-750, Method 2026.
- Molded plastic glass passivated junction.
