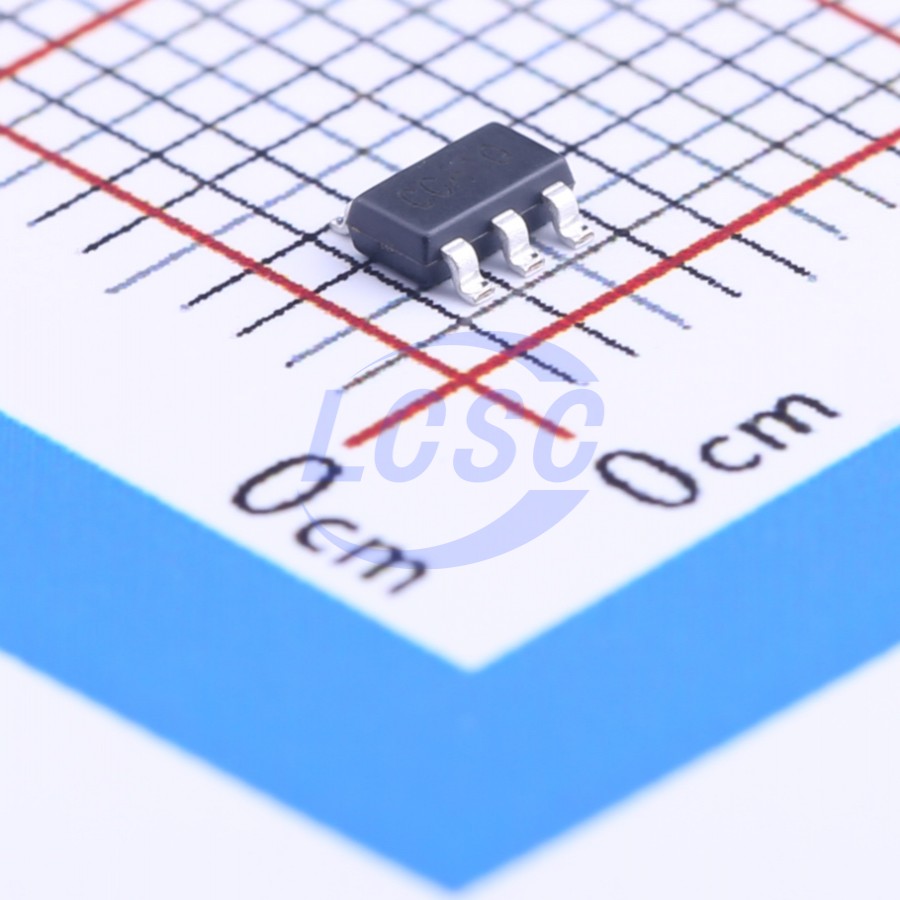

PAM2312AABADJ

The PAM2312 is a step- down current- mode, DC- DC converter. At heavy load, the constant frequency PWM control performs excellent stability and transient response. To ensure the longest battery life in portable applications, the PAM2312 provides a power- saving Pulse- Skipping Modulation (PSM) mode to reduce quiescent current under light load operation to save power. The PAM2312 supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+ Li- polymer cell, multiple Alkaline/NiMH cell, USB, and other standard power sources. The output voltage is adjustable from 0.6V to the input voltage. All versions employ internal power switch and synchronous rectifier to minimize external part count and realize high efficiency. During shutdown, the input is disconnected from the output and the shutdown current is less than 1μA. Other key features include under- voltage lockout to prevent deep battery discharge. The PAM2312 is available in TSOT25 packages.

Applications

• Cellular Phone
• Portable Electronics
• Wireless Devices
• Cordless Phone
• Computer Peripherals
• Battery Powered Widgets
• Electronic Scales
• Digital Frame

Key features

• Efficiency up to 96%
• Only 40μA (typ.) Quiescent Current
• Output Current up to 1A
• Internal Synchronous Rectifier
• 1.5MHz Switching Frequency
• Soft Start
• Under- Voltage Lockout
• Short Circuit Protection
• Thermal Shutdown
• TSOT25 Packages
• Totally Lead- Free & Fully RoHS Compliant
• Halogen and Antimony Free. "Green" Device
