TECH PUBLIC

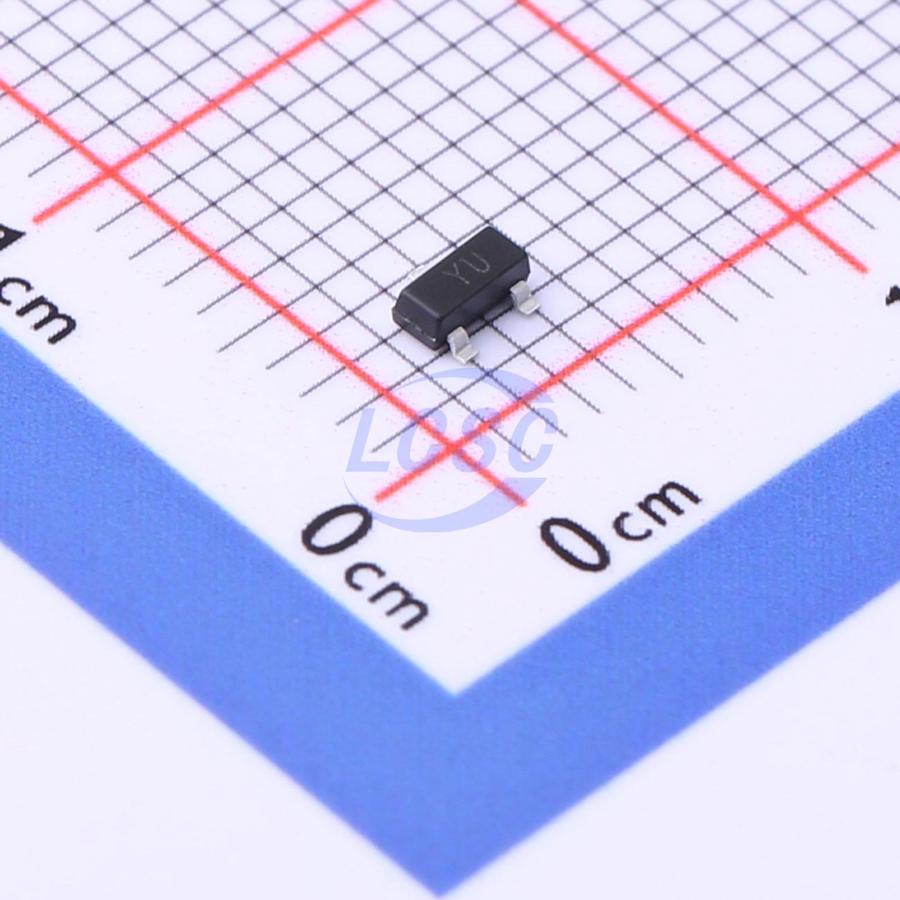

PCESD3V3AP

15VC Clamp 20A@8/20us Ipp SOT-23

SOT-23RoHSActive

3.3VWM 15VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: PCESD3V3AP
Store part #: C2905620
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,480 in stock

#C2905620

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
20+	₹5.48	₹109.60
200+	₹4.43	₹886.00
600+	₹3.92	₹2,352.00
3,000+	₹3.18	₹9,540.00
9,000+	₹2.86	₹25,740.00
21,000+	₹2.70	₹56,700.00

Quantity (min 20, multiples of 20)

20 × ₹5.48

₹109.60

excl. GST

₹129.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PCESD3V3AP

₹109.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 20A@8/20us
Peak Pulse Power Dissipation (Ppp): 400W@8/20us
Voltage - Breakdown: 5V
Number of Channels: 2
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.031 g

Overview

Applications

Cellular Handsets and Accessories
Notebooks and Handhelds
Portable Instrumentation
Set Top Box
Industrial Controls

Key features

400W peak pulse power (8/20us)
Protects one bi-directional or two uni-directional lines
Ultralow leakage: nA level
Operating voltage: 5V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30KV Contact discharge: ±30KV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 20A (8/20μs)
RoHS Compliant
