NXPDatasheet (PDF)

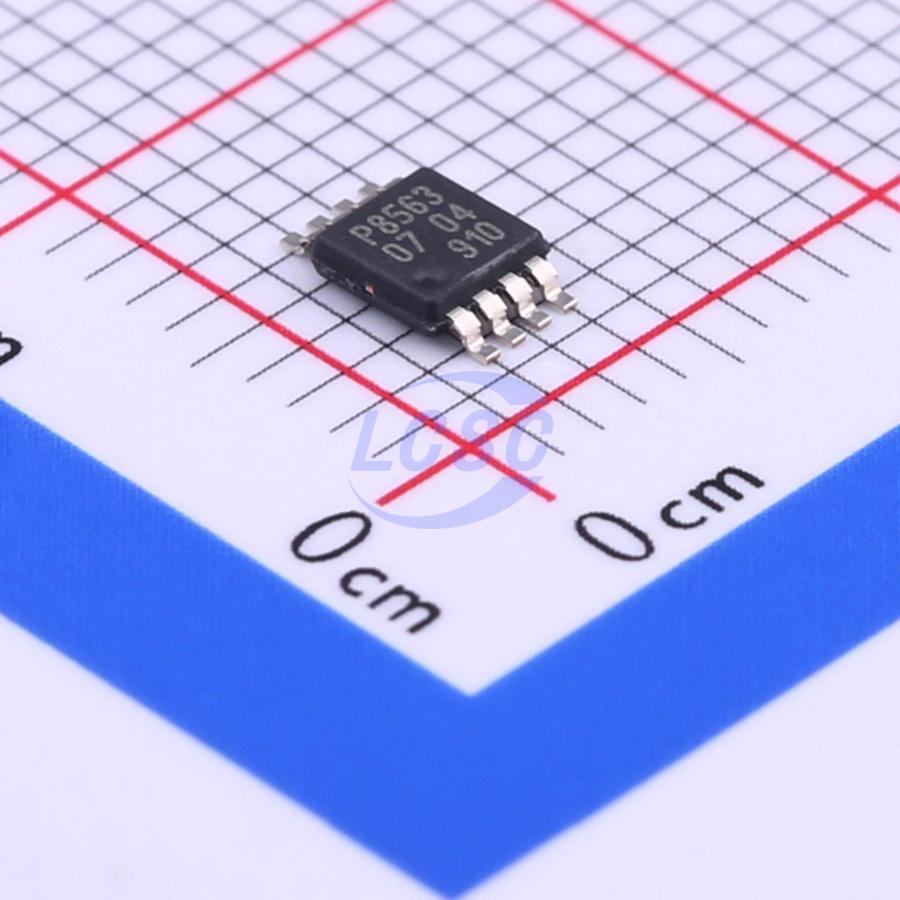

PCF8563TS/5,118
External Yes TSSOP-8-3mm Real Time Clocks RoHS
TSSOP-8-3mmROHS3 CompliantActive
Real-Time Clock/Calendar
- Manufacturer
- NXP
- Manufacturer part #
- PCF8563TS/5,118
- Store part #
- C27397
- Package / case
- TSSOP-8-3mm
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,763 in stock
#C27397
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.80 | ₹74.80 |
| 10+ | ₹62.84 | ₹628.40 |
| 30+ | ₹54.15 | ₹1,624.50 |
| 100+ | ₹47.19 | ₹4,719.00 |
| 500+ | ₹45.01 | ₹22,505.00 |
| 1,000+ | ₹43.49 | ₹43,490.00 |
1 × ₹74.80
₹74.80
excl. GST
₹88.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PCF8563TS/5,118
₹74.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V~5.5V
- Features
- Programmable clock output;Alarm function;Watchdog timer;Countdown timer
- crystal oscillator
- External
- Alarm Output
- Yes
- Current - Supply
- 250nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
PCF8563 is a low-power CMOS real-time clock/calendar IC featuring programmable clock output, interrupt output, and low-voltage detection. All addresses and data are transferred serially via a two-wire bidirectional I2C bus at a maximum rate of 400 kbps. The register address auto-increments after each read/write data byte.
Key features
- Year, month, day, day-of-week, hour, minute, and second timekeeping based on 32.768kHz crystal
- Century flag
- Clock operating voltage: 1.0 - 5.5V (room temperature)
- Low standby current; typical 0.25μA (VDD = 3.0V, Tamb = 25°C)
- 400kHz two-wire I2C bus interface (VDD = 1.8 - 5.5V)
- Programmable clock output (32.768kHz, 1.024kHz, 32Hz, and 1Hz)
- Alarm and timer functions
- Integrated crystal capacitors
- Internal power-on reset (POR)
- I2C bus slave address: read: A3h; write: A2h
- Open-drain interrupt pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PCF8563TS/4,118#C2687960NXP · TSSOP-8-3mm | NXP | TSSOP-8-3mm | 38 | ₹339.85 · 38 in stock | View |
 | PCA85063ATT/AJ#C3304584NXP · TSSOP-8-3mm | NXP | TSSOP-8-3mm | 8 | ₹266.41 · 8 in stock | View |
 | PCF85063ATT/AJ#C165608NXP · TSSOP-8-3mm | NXP | TSSOP-8-3mm | 4,650 | ₹108.10 · 4,650 in stock | View |
 | HT8563ANZ#C2848983HTCSEMI · DIP-8 | HTCSEMI | DIP-8 | 119 | ₹91.10 · 119 in stock | View |
 | HT8563ARMZ#C5143012HTCSEMI · MSOP-8 | HTCSEMI | MSOP-8 | 1,358 | ₹109.72 · 1,358 in stock | View |
