HXY MOSFETDatasheet (PDF)

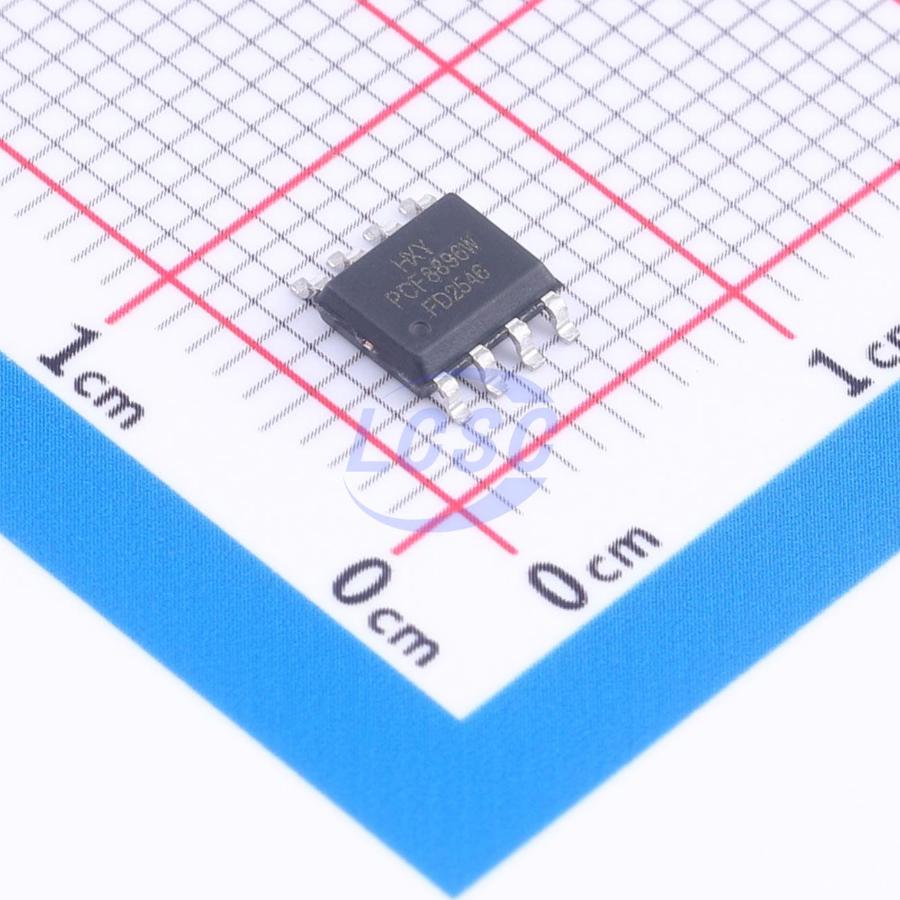

PCF8896W-HXY
1.5W 30V 18A 5.5mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PCF8896W-HXY
- Store part #
- C53263392
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53263392
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.60 | ₹136.60 |
| 10+ | ₹112.11 | ₹1,121.10 |
| 30+ | ₹99.87 | ₹2,996.10 |
| 100+ | ₹87.64 | ₹8,764.00 |
| 500+ | ₹80.33 | ₹40,165.00 |
| 1,000+ | ₹76.68 | ₹76,680.00 |
1 × ₹136.60
₹136.60
excl. GST
₹161.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PCF8896W-HXY
₹136.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 163pF
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3010LSS-13-HXY#C53263008HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 75 | ₹33.59 · 75 in stock | View |
 | STS14N3LLH5-HXY#C53263089HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 90 | ₹35.63 · 90 in stock | View |
 | NTMS4916NR2G-HXY#C53263114HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 98 | ₹56.70 · 98 in stock | View |
 | ITF86130SK8T-HXY#C53263126HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 99 | ₹305.40 · 99 in stock | View |
 | NTMS4807NR2G-HXY#C53263127HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 95 | ₹42.42 · 95 in stock | View |
