DIODESDatasheet (PDF)

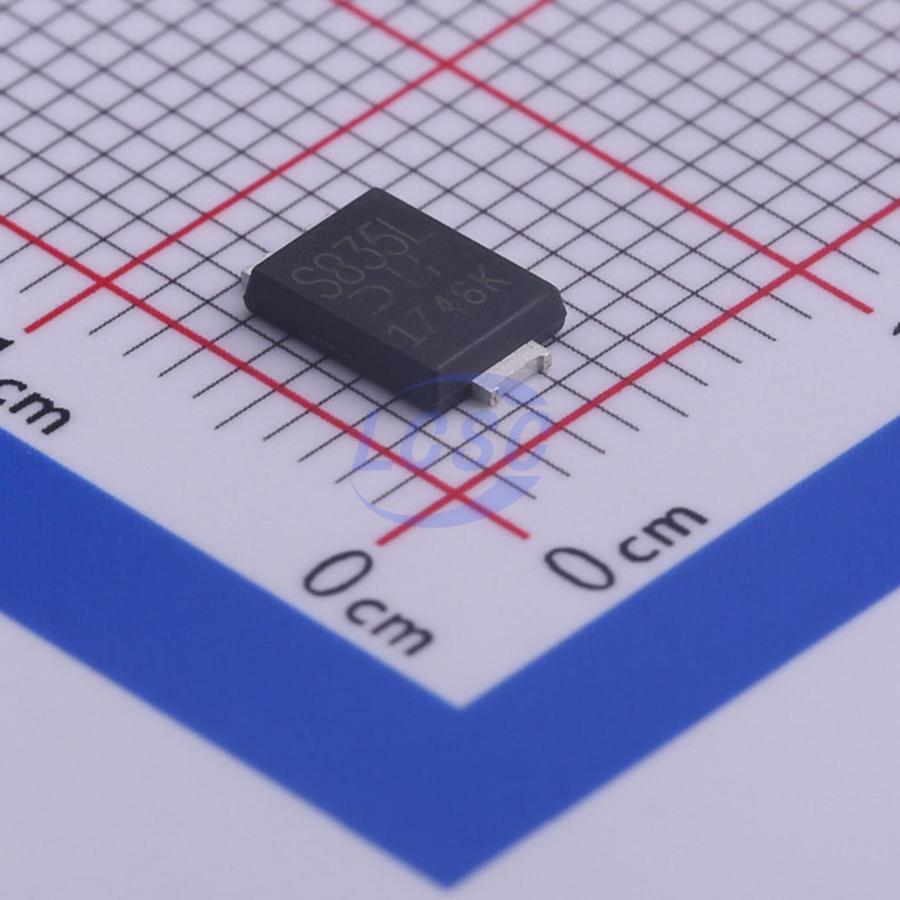

PDS835L-13
1 Independent 35V 510mV@8A 8A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage: 35V Current: 8A
- Manufacturer
- DIODES
- Manufacturer part #
- PDS835L-13
- Store part #
- C444972
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
187 in stock
#C444972
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.97 | ₹145.97 |
| 10+ | ₹119.22 | ₹1,192.20 |
| 30+ | ₹105.72 | ₹3,171.60 |
| 100+ | ₹92.45 | ₹9,245.00 |
| 500+ | ₹84.62 | ₹42,310.00 |
| 1,000+ | ₹80.49 | ₹80,490.00 |
1 × ₹145.97
₹145.97
excl. GST
₹172.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS835L-13
₹145.97 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 35V
- Voltage - Forward(Vf@If)
- 510mV@8A
- Reverse Leakage Current (Ir)
- 1.4mA@35V
- Non-Repetitive Peak Forward Surge Current
- 120A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
Key features
- Guard Ring Die Construction for Transient Protection
- Low Forward Voltage Drop
- For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications
- High Forward Surge Current Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DST1050S#C3759436Littelfuse · TO-277B | Littelfuse | TO-277B | 100 | ₹181.78 · 100 in stock | View | |
 | DST1545S#C3759357Littelfuse · TO-277B | Littelfuse | TO-277B | 63 | ₹210.94 · 63 in stock | View |
 | NSB1045L#C50338731BORN · TO-277B | BORN | TO-277B | 3,385 | ₹21.15 · 3,385 in stock | View |
 | SVM1550VB_R2_00001#C263361PANJIT · TO-277B | PANJIT | TO-277B | 4,010 | ₹46.99 · 4,010 in stock | View |
 | SB1560L#C54950737Slkor · TO-277 | Slkor | TO-277 | 4,120 | ₹38.63 · 4,120 in stock | View |
