LittelfuseDatasheet (PDF)

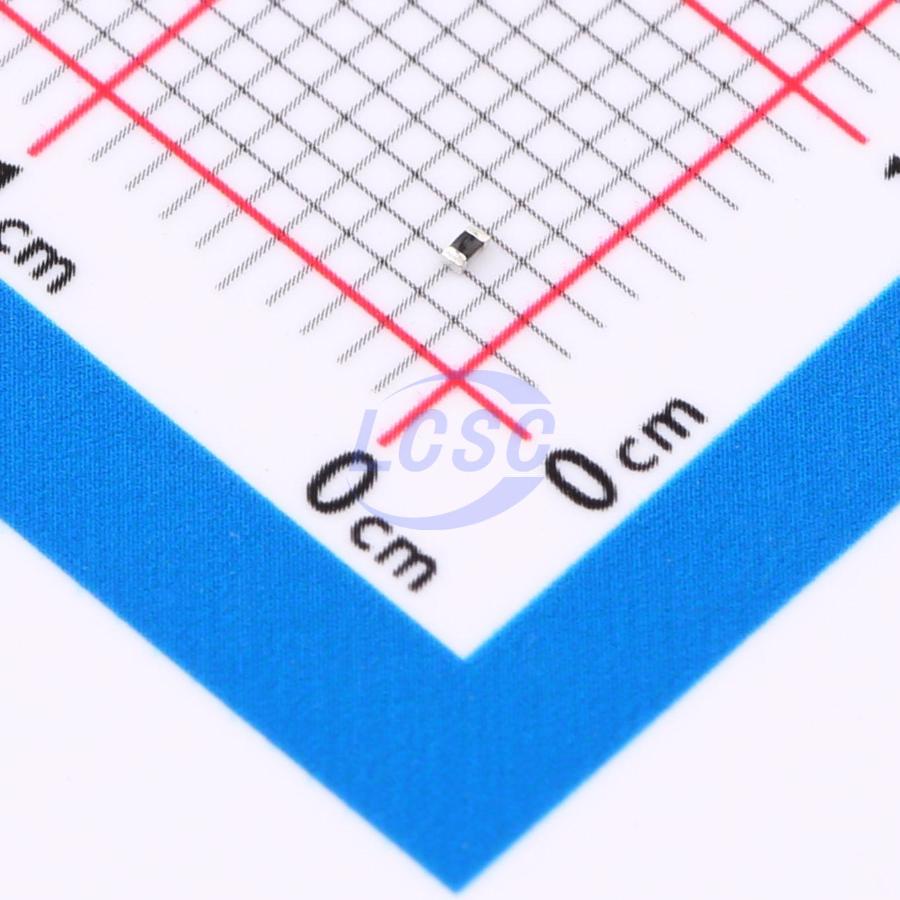

PESD0402-140
40VC Clamp ESD DIODE 0402
Popular0402ROHS3 CompliantActive
ESD DIODE 14VWM 40VC 0402
- Manufacturer
- Littelfuse
- Manufacturer part #
- PESD0402-140
- Store part #
- C10662
- Package / case
- 0402
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44,355 in stock
#C10662
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.09 | ₹90.45 |
| 50+ | ₹14.98 | ₹749.00 |
| 150+ | ₹13.38 | ₹2,007.00 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 2,500+ | ₹8.68 | ₹21,700.00 |
| 5,000+ | ₹8.36 | ₹41,800.00 |
5 × ₹18.09
₹90.45
excl. GST
₹106.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD0402-140
₹90.45 for 5 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- type
- ESD
- Reverse Leakage Current (Ir)
- 10uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
- ESD protection for high frequency applications (HDMI 1.3) - Smaller form factor for board space savings - Helps protect electronic circuits against damage from electrostatic discharge (ESD) events - Assists equipment to pass IEC 61000-4-2, level 4 testing
Applications
- HDMI 1.3 interface
- LCD monitors, HDTVs
- Mobile phones
- Antennas (mobile phones, GPS, etc.)
- Portable video devices (PDA, digital cameras, Bluetooth devices, etc.)
- Printer ports
- High-speed Ethernet
- USB 2.0 and IEEE 1394 interfaces
- DVI interface
Key features
- 0.25 pF (typ) Capacitance
- Low leakage current
- Low clamping voltage
- Fast response time (<1 ns)
- Capable of withstanding numerous ESD strikes
- Compatible with standard reflow installation procedures
- Thick film technology
- Bi-directional protection
