TECH PUBLICDatasheet (PDF)

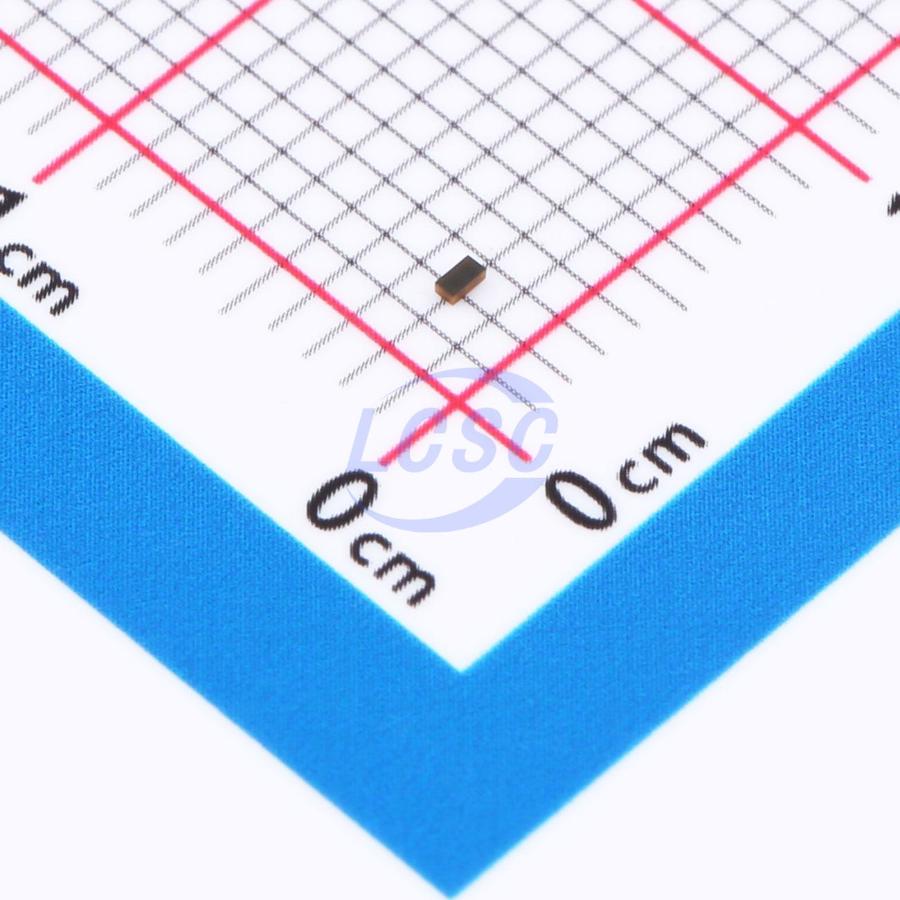

PESD0402MS05
40VC Clamp ESD DIODE 0402
0402RoHSActive
ESD DIODE 5VWM 40VC 0402
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD0402MS05
- Store part #
- C47117549
- Package / case
- 0402
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,420 in stock
#C47117549
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.76 | ₹75.20 |
| 200+ | ₹2.99 | ₹598.00 |
| 600+ | ₹2.55 | ₹1,530.00 |
| 2,000+ | ₹2.30 | ₹4,600.00 |
| 10,000+ | ₹2.08 | ₹20,800.00 |
| 20,000+ | ₹1.96 | ₹39,200.00 |
20 × ₹3.76
₹75.20
excl. GST
₹88.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD0402MS05
₹75.20 for 20 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.011 g
Overview
Applications
- Smart Phone/Mobile Intermnet Device
- Laptop/Desktop Computer
- Antennas (Cell Phones, GPS..)
- High Speed Ethernet
- USB 3.0 and USB 3.1
Key features
- Ultra-Low capacitance: 0.05pF(typ.)
- Low leakage current(<10nA)
- Fast response time(<1ns)
- Bi-directional, single line protection
- IEC 61000-4-2 (ESD Air): 15kV
- IEC 61000-4-2 (ESD Contact): 8kV
