MSKSEMIDatasheet (PDF)

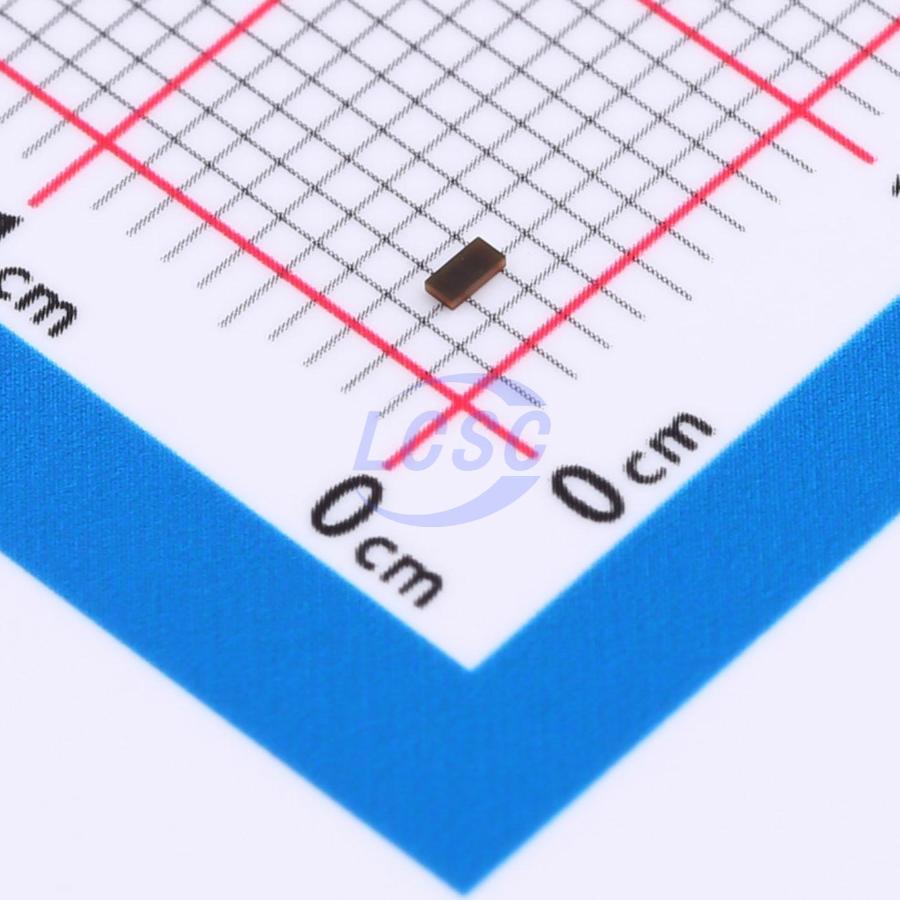

PESD0603MS24-MS
40VC Clamp ESD DIODE 0603
0603RoHSActive
ESD DIODE 24VWM 40VC 0603
- Manufacturer
- MSKSEMI
- Manufacturer part #
- PESD0603MS24-MS
- Store part #
- C7473178
- Package / case
- 0603
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,630 in stock
#C7473178
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.68 | ₹66.80 |
| 100+ | ₹5.42 | ₹542.00 |
| 300+ | ₹4.80 | ₹1,440.00 |
| 1,000+ | ₹4.33 | ₹4,330.00 |
| 5,000+ | ₹3.47 | ₹17,350.00 |
| 10,000+ | ₹3.27 | ₹32,700.00 |
10 × ₹6.68
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PESD0603MS24-MS
₹66.80 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -40℃~+90℃
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
Overview
The PESD is designed for the protection of one bidirectional data line from ESD damage.
Applications
- USB 3.0/3.1
- HDMI 1.3/1.4/2.0
- RF Antenna
- SATA and eSATA Interface
Key features
- Ultra-Low capacitance: 0.05pF(typ.)
- Low leakage current(<100nA)
- Fast response time(<1ns)
- Bi-directional, single line protection
- IEC 61000-4-2 (ESD Air): 15kV
- IEC 61000-4-2 (ESD Contact): 8kV
