PESD12VL1BA,115

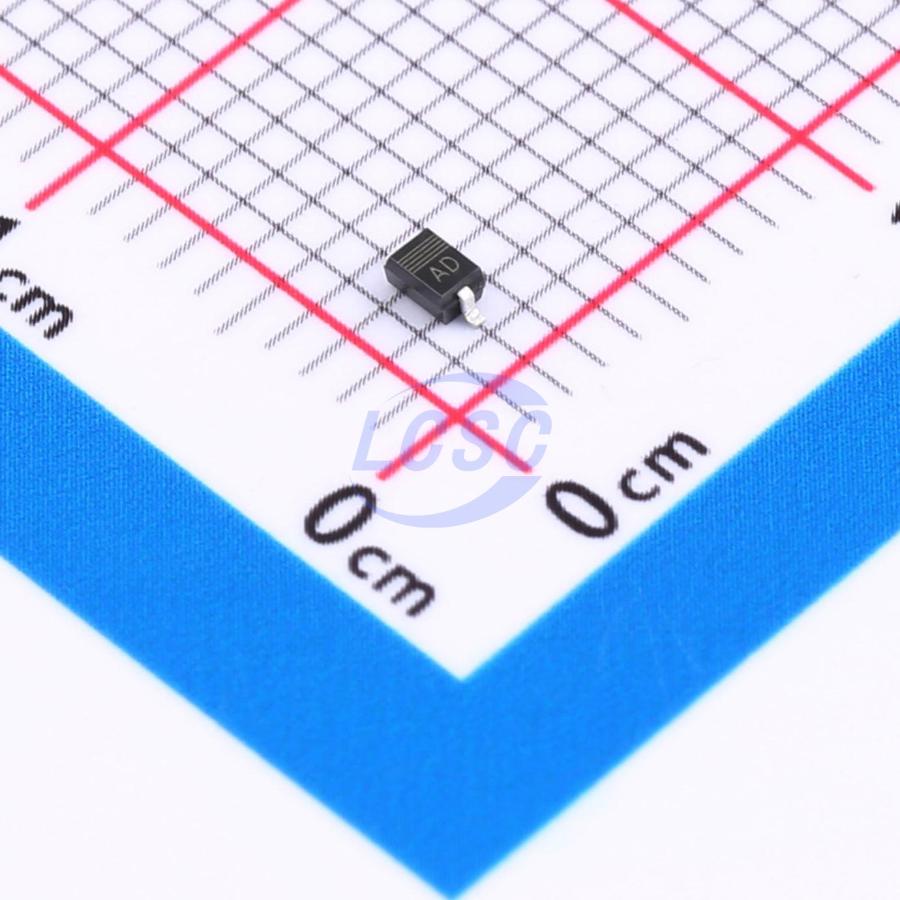

37VC Clamp 5A Ipp ESD DIODE SOD-323
SOD-323ROHS3 CompliantActive
ESD DIODE 12VWM 37VC SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD12VL1BA,115
- Store part #
- C38558
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
265 in stock
#C38558
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.76 | ₹143.80 |
| 50+ | ₹22.48 | ₹1,124.00 |
| 150+ | ₹19.78 | ₹2,967.00 |
| 500+ | ₹16.41 | ₹8,205.00 |
| 3,000+ | ₹14.91 | ₹44,730.00 |
| 6,000+ | ₹14.01 | ₹84,060.00 |
5 × ₹28.76
₹143.80
excl. GST
₹169.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD12VL1BA,115
₹143.80 for 5 + GST
Specifications
- Clamping Voltage
- 37V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Bidirectional ElectroStatic Discharge (ESD) protection diodes in a very small SOD323 (SC-76) SMD plastic package designed to protect one signal line from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Data lines
- Communication systems
- CAN bus protection
- Audio and video equipment
Key features
- Single-line bidirectional ESD protection
- ESD protection capability >23 kV
- Maximum peak pulse power: P_pp = 500 W
- Compliant with IEC 61000-4-2 Level 4 (ESD)
- Low clamping voltage: V_(CL)R = 26 V
- Compliant with IEC 61000-4-5 (Surge); I_pp = 18 A
- Ultra-low leakage current: I_RM < 0.09 μA
- Ultra-compact SMD plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD12VL1BA-HXY#C19627018HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,840 | ₹5.20 · 2,840 in stock | View |
 | H12VND3B#C20617920R+O · SOD-323 | R+O | SOD-323 | 39,520 | ₹3.61 · 39,520 in stock | View |
 | PESD12VL1BA#C37331490GOODWORK · SOD-323 | GOODWORK | SOD-323 | 9,200 | ₹3.77 · 9,200 in stock | View |
 | HPESD12VL1BA115#C42402073HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 3,000 | ₹5.38 · 3,000 in stock | View |
 | PESD12VL1BA#C7503115FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 2,260 | ₹4.07 · 2,260 in stock | View |
