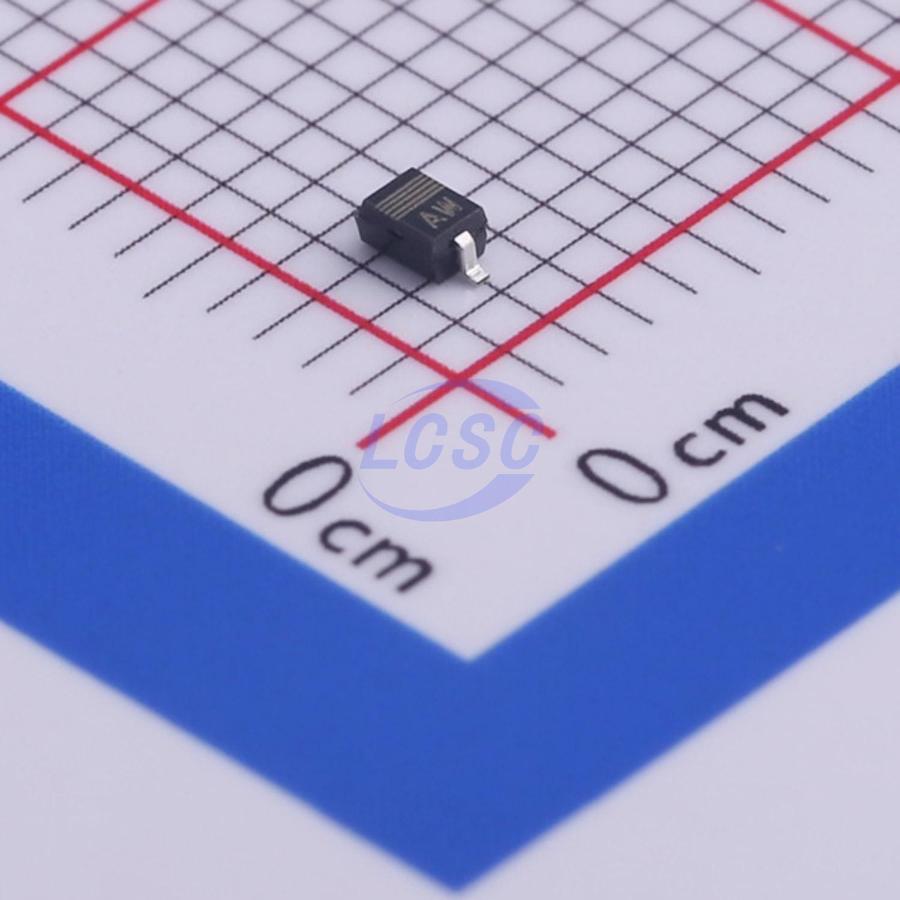

PESD12VS1UA,115
27VC Clamp 22.5A@8/20us Ipp ESD DIODE SOD-323
SOD-323ROHS3 CompliantActive
ESD DIODE 12VWM 27VC SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD12VS1UA,115
- Store part #
- C131084
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
660 in stock
#C131084
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.42 | ₹54.20 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.96 | ₹17,760.00 |
| 9,000+ | ₹2.79 | ₹25,110.00 |
10 × ₹5.42
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD12VS1UA,115
₹54.20 for 10 + GST
Specifications
- Clamping Voltage
- 27V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 22.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 15.75V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Unidirectional ElectroStatic Discharge (ESD) protection diodes in a very small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and transient overvoltage.
Applications
- Computers and peripherals
- Audio and video equipment
- Mobile phones and accessories
- Communication systems
- Portable electronic devices
- Medical and industrial equipment
Key features
- Single-line transient voltage suppression (TVS) protection
- Maximum peak pulse power: Ppp = 890 W
- Low clamping voltage: VCL = 19V
- Low leakage current: IRM = 300A
- ESD protection up to 30 kV
- Compliant with IEC 61000-4-2 Level 4 (ESD)
- Compliant with IEC 61000-4-5 (Surge); mIPP = 47mA
- AEC-Q101 qualified
