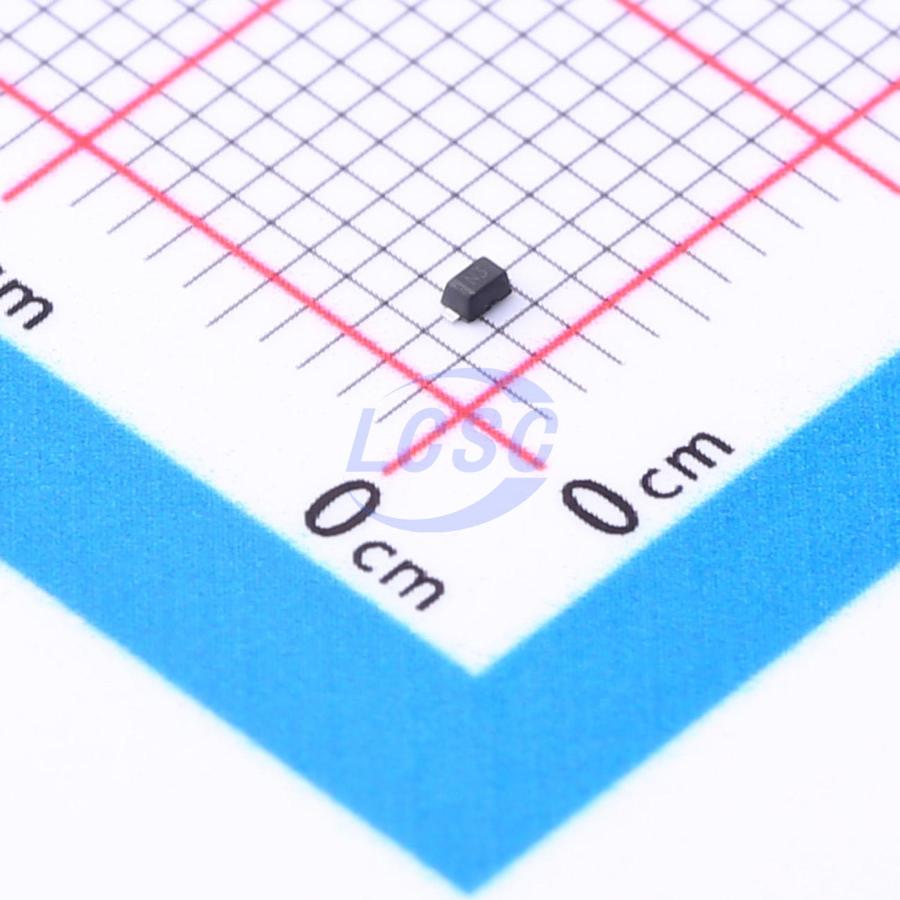

PESD12VS1UB TECH PUBLIC

PESD12VS1UB

19VC 30VC Clamp TVS DIODE SOD-523

SOD-523RoHSActive

TVS DIODE 12VWM 19VC 30VC SOD-523

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD12VS1UB
Store part #: C2912531
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,440 in stock

#C2912531

Stock & price checked 17 days ago

Quantity	Unit price	Pack price
20+	₹5.64	₹112.80
200+	₹4.51	₹902.00
600+	₹3.89	₹2,334.00
3,000+	₹3.07	₹9,210.00
9,000+	₹2.75	₹24,750.00
21,000+	₹2.57	₹53,970.00

Quantity (min 20, multiples of 20)

20 × ₹5.64

₹112.80

excl. GST

₹133.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD12VS1UB

₹112.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 19V;30V
Operating Temperature: -55℃~+125℃
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 15V
Number of Channels: 1
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.024 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
Audio Players
Keypads, Side Keys, LCD Displays, USB2.0

Key features

150 Watts peak pulse power (tp = 8/20μs)
Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact)
IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
Protects One Power or I/O Port
Low leakage current
Low operating and clamping voltages
Solid - state silicon avalanche technology
