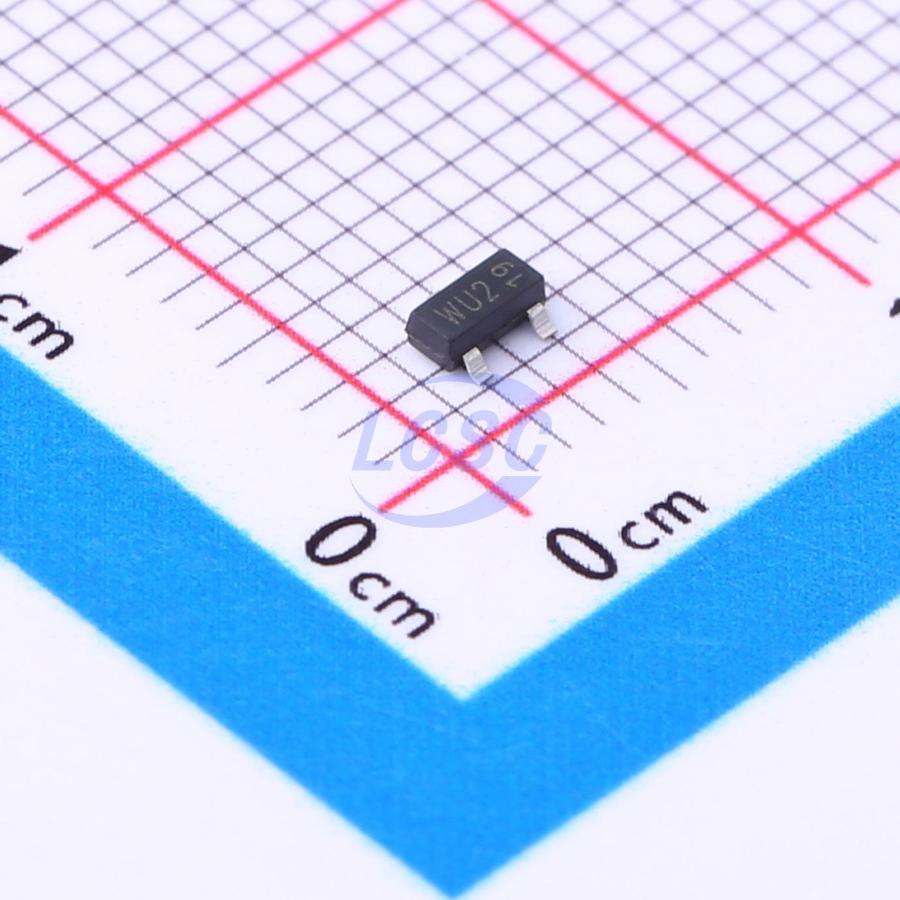

PESD12VS2UT TECH PUBLIC

PESD12VS2UT

20V 7A@8/20us 150W@8/20us 13.3V Bidirectional 12V SOT-23 TVS Diodes

SOT-23RoHSActive

TVS Diode Array

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD12VS2UT
Store part #: C2923369
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,890 in stock

#C2923369

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
10+	₹7.99	₹79.90
100+	₹6.43	₹643.00
300+	₹5.65	₹1,695.00
3,000+	₹4.54	₹13,620.00
6,000+	₹4.06	₹24,360.00
9,000+	₹3.82	₹34,380.00

Quantity (min 10, multiples of 10)

10 × ₹7.99

₹79.90

excl. GST

₹94.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD12VS2UT

₹79.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 7A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Number of Channels: 2
Voltage - Breakdown: 13.3V
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview

Applications

USB Power & Data Line Protection
Monitors and Flat Panel Displays
I²C Bus Protection
Portable Instrumentation
Set Top Box

Key features

150 Watts peak pulse power (tp = 8/20μs)
Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact) IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
Working voltages: 12V
Protects one bidirectional line or two unidirectional lines
Low operating and clamping voltages
Solid - state silicon avalanche technology
