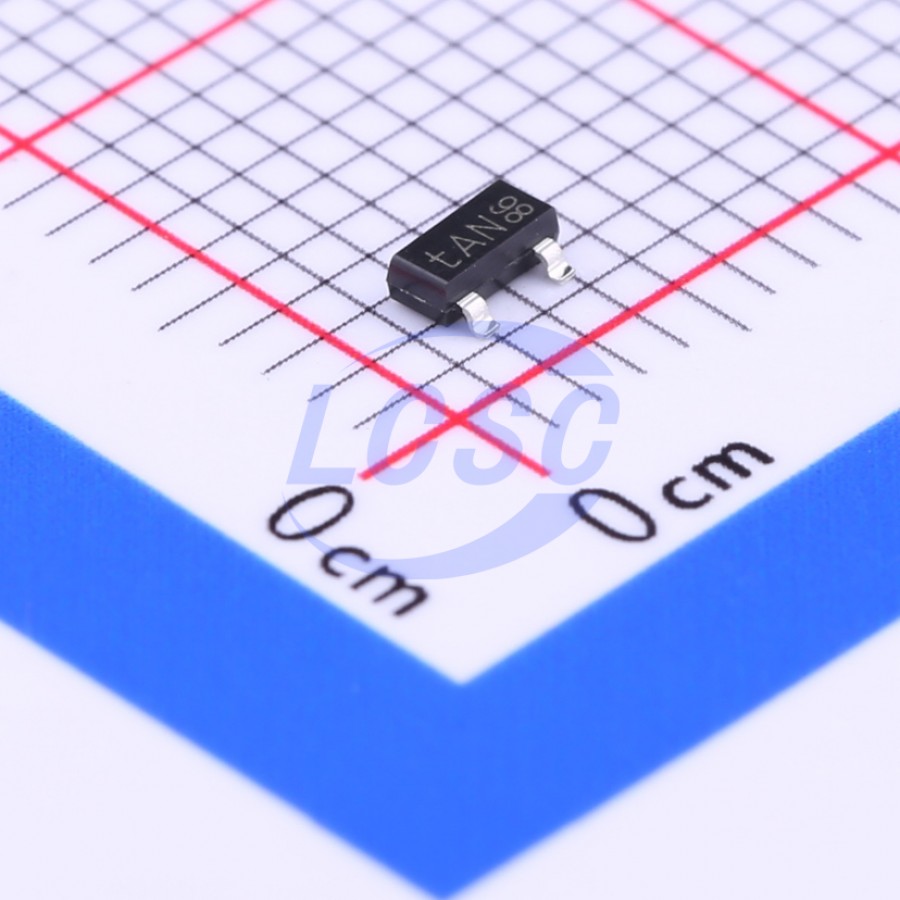

PESD1CAN,215
₹91.40 for 10 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 30.3V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
PESD1CAN in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive Controller Area Network (CAN) bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.
Applications
- The PESD1CAN is designed for the protection of two automotive CAN bus lines from the damage caused by ESD and surge pulses.
- The device can be used for both, high - speed CAN bus and fault - tolerant CAN bus protection.
Key features
- Due to the integrated diode structure only one small SOT23 package is needed to protect two CAN bus lines
- Max. peak pulse power: P_PP = 200 W at Δt_p = 8/20 μs
- Low clamping voltage: V_CL = 40 V at l_PP = 1 A
- Ultra low leakage current: l_BM < 1 nA
- Typ. diode capacitance matching: ΔC_d/C_d = 0.1 %
- ESD protection up to 23 kV IEC 61000 - 4 - 2, level 4 (ESD)
- IEC 61000 - 4 - 5 (surge); l_PP = 3 A at t_p = 8/20 μs
- Small SMD plastic package
