TECH PUBLICDatasheet (PDF)

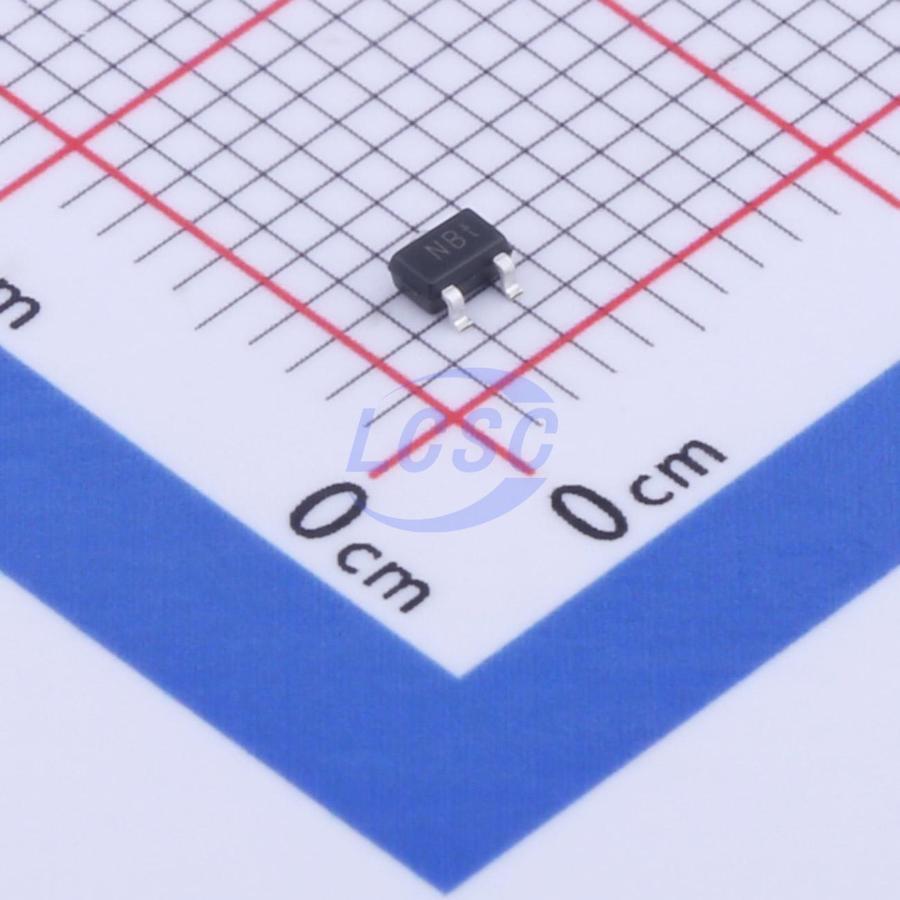

PESD1CAN-UX
50VC Clamp 3A@8/20us Ipp ESD DIODE SOT-323
SOT-323RoHSActive
ESD DIODE 24VWM 50VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD1CAN-UX
- Store part #
- C907839
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C907839
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.80 | ₹88.00 |
| 100+ | ₹7.20 | ₹720.00 |
| 300+ | ₹6.39 | ₹1,917.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.23 | ₹38,070.00 |
10 × ₹8.80
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD1CAN-UX
₹88.00 for 10 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 25V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Applications
- Cell Phones
- Audio Interface Connections
- Consumer Electronics (DVR, Set - Top Box, TV)
- CAN bus protection
- Automotive applications
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 3A (8/20μs)
- RoHS Compliant
