JSMSEMI

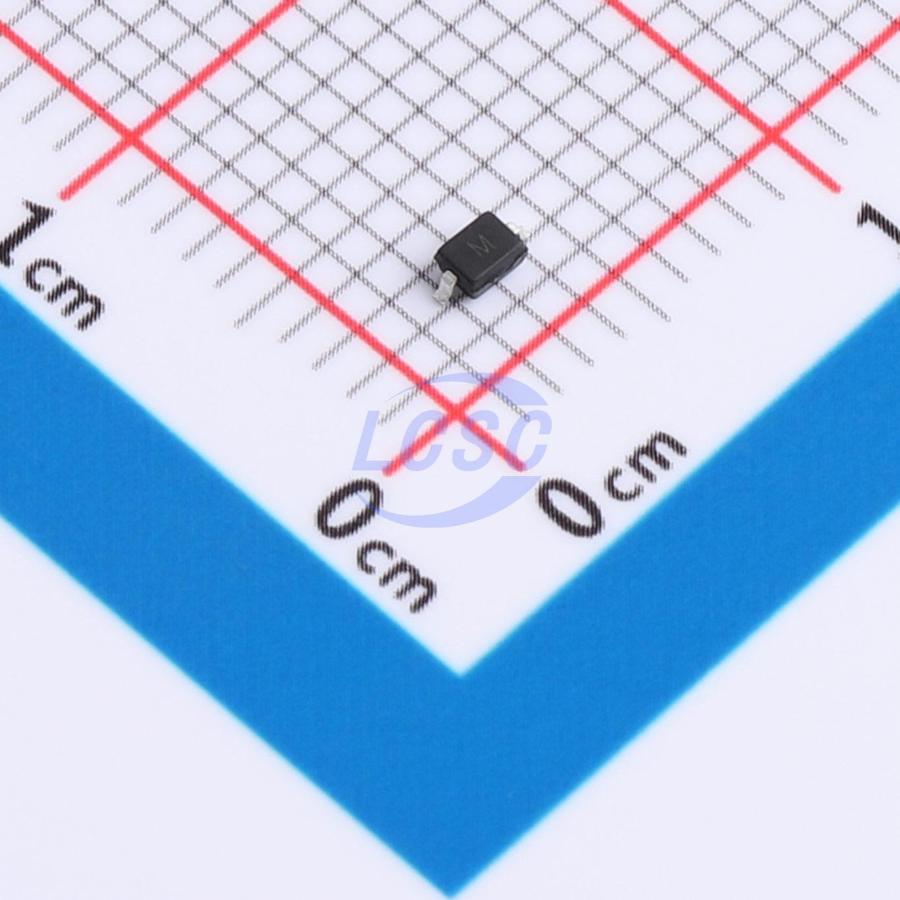

PESD1IVN24-AX-JSM

42V 8A@8/20us 350W@8/20us 28V Bidirectional 24V SOD-323 TVS Diodes RoHS

SOD-323ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: PESD1IVN24-AX-JSM
Store part #: C53113960
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,690 in stock

#C53113960

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
10+	₹5.50	₹55.00
100+	₹4.42	₹442.00
300+	₹3.86	₹1,158.00
3,000+	₹3.28	₹9,840.00
6,000+	₹2.95	₹17,700.00
9,000+	₹2.78	₹25,020.00

Quantity (min 10, multiples of 10)

10 × ₹5.50

₹55.00

excl. GST

₹64.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD1IVN24-AX-JSM

₹55.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 42V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 1
Voltage - Breakdown: 28V
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.027 g

Overview

PESD1IVN24-AX-JSM is a transient voltage suppressor array designed to protect components connected to data and transmission lines against ESD, EFT, and lightning strikes. All pins are rated to withstand 30kV ESD pulses using the IEC61000-4-2 air discharge method.
