JSMSEMIDatasheet (PDF)

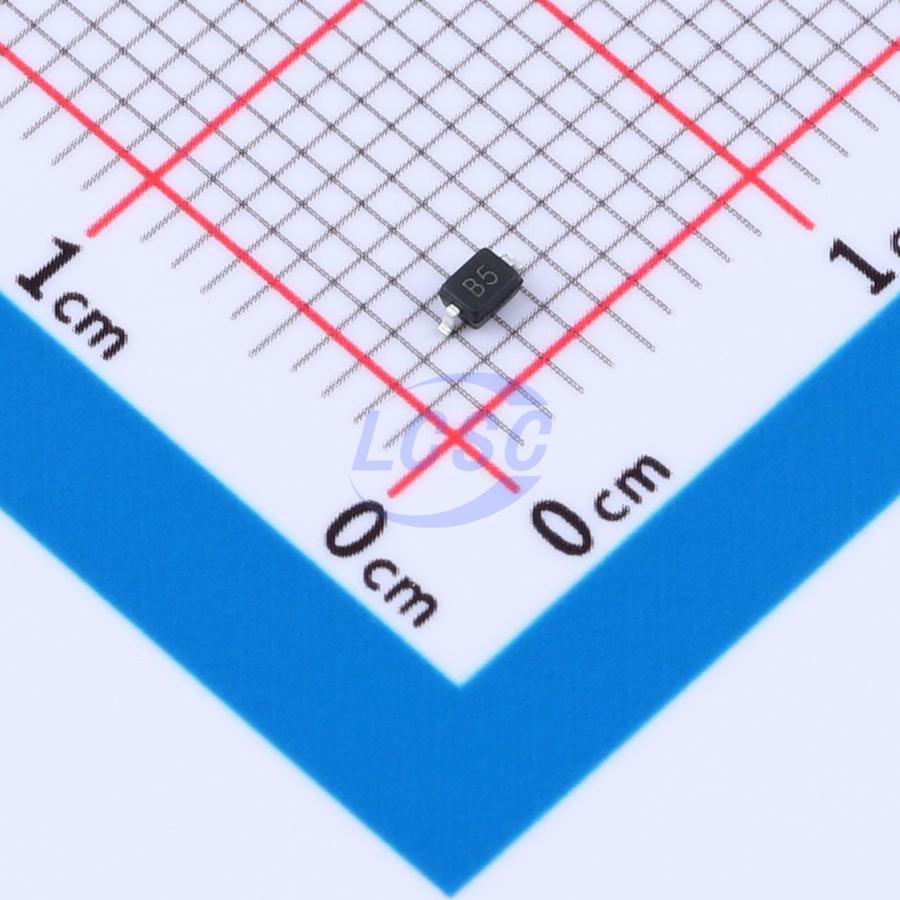

PESD1IVN27-AX-JSM
50V 3A@8/20us 150W@8/20us 33.5V 27V SOD-323 TVS Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PESD1IVN27-AX-JSM
- Store part #
- C53113904
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C53113904
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.42 | ₹74.20 |
| 100+ | ₹5.95 | ₹595.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.88 | ₹34,920.00 |
10 × ₹7.42
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD1IVN27-AX-JSM
₹74.20 for 10 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 33.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 27V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
PESD1IVN27-AX-JSM is a compact ESD protection diode in SOD-323 package, designed to protect circuits against voltage transients and electrostatic discharge, featuring low leakage current and low clamping voltage.
Applications
- Portable devices
- Consumer electronics
- Communication modules
Key features
- Ultra-low leakage current (nanoampere level)
- Low clamping voltage
- RoHS, REACH, SVHC, and halogen-free compliant
- SOD-323 package; ±30kV ESD protection (per IEC 61000-4-2)
- Operating temperature range: -40°C ~ +125°C
