NexperiaDatasheet (PDF)

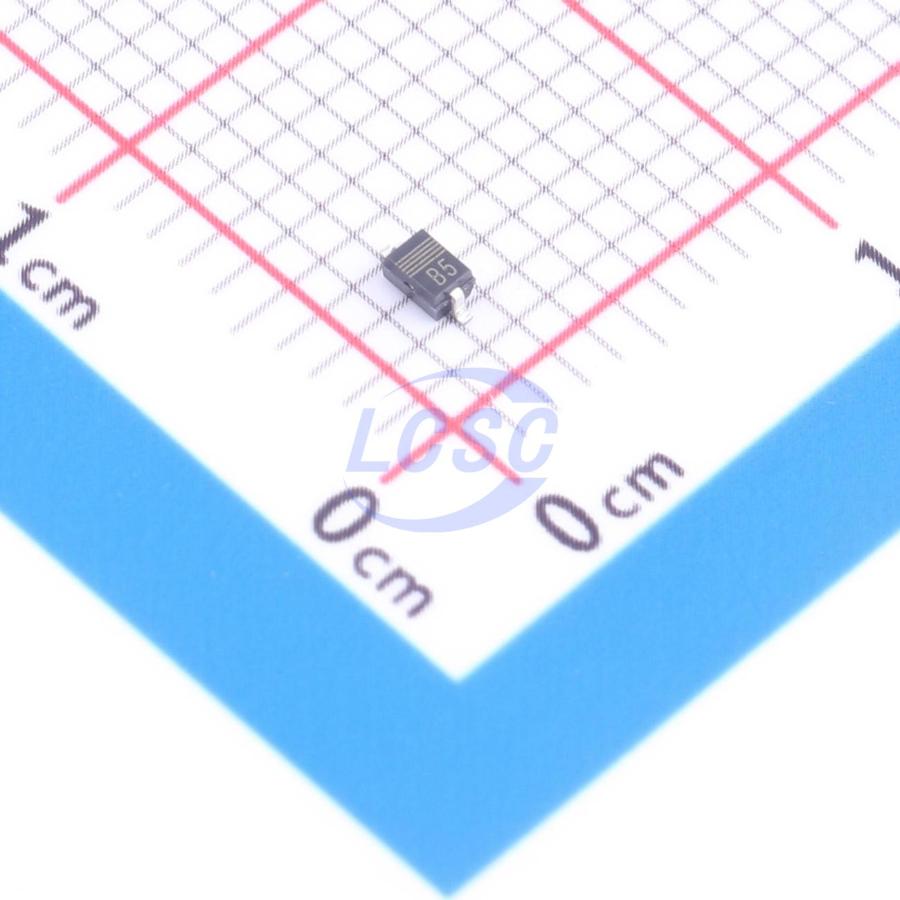

PESD1IVN27A-QX
45VC Clamp TVS DIODE SOD-323
SOD-323ROHS3 CompliantActive
TVS DIODE 27VWM 36VC SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD1IVN27A-QX
- Store part #
- C6735022
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,895 in stock
#C6735022
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.94 | ₹164.70 |
| 50+ | ₹25.82 | ₹1,291.00 |
| 150+ | ₹22.77 | ₹3,415.50 |
| 500+ | ₹18.97 | ₹9,485.00 |
| 3,000+ | ₹17.28 | ₹51,840.00 |
| 6,000+ | ₹16.25 | ₹97,500.00 |
5 × ₹32.94
₹164.70
excl. GST
₹194.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD1IVN27A-QX
₹164.70 for 5 + GST
Specifications
- Clamping Voltage
- 36V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 28V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.279 g
Overview
ESD protection device in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package, designed to protect automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients.
Applications
- ESD protection for In-vehicle network lines in automotive environments
- CAN
- LIN
- FlexRay
- SENT
Key features
- Reverse stand-off voltage: VRWM = 27 V
- Low clamping voltage: VCL = 36 V at IPP = 3 A
- ESD protection up to 30 kV (IEC 61000-4-2)
- ESD protection up to 30 kV (ISO 10605: C = 330 pF, R = 330 Ω)
- ISO 7637-3: Pulse a: VS = -150 V / Pulse b: VS = +100 V
- Ultra low leakage current: |IRM| < 1 nA
- Qualified according to AEC-Q101 and recommended for use in automotive applications
