TECH PUBLIC

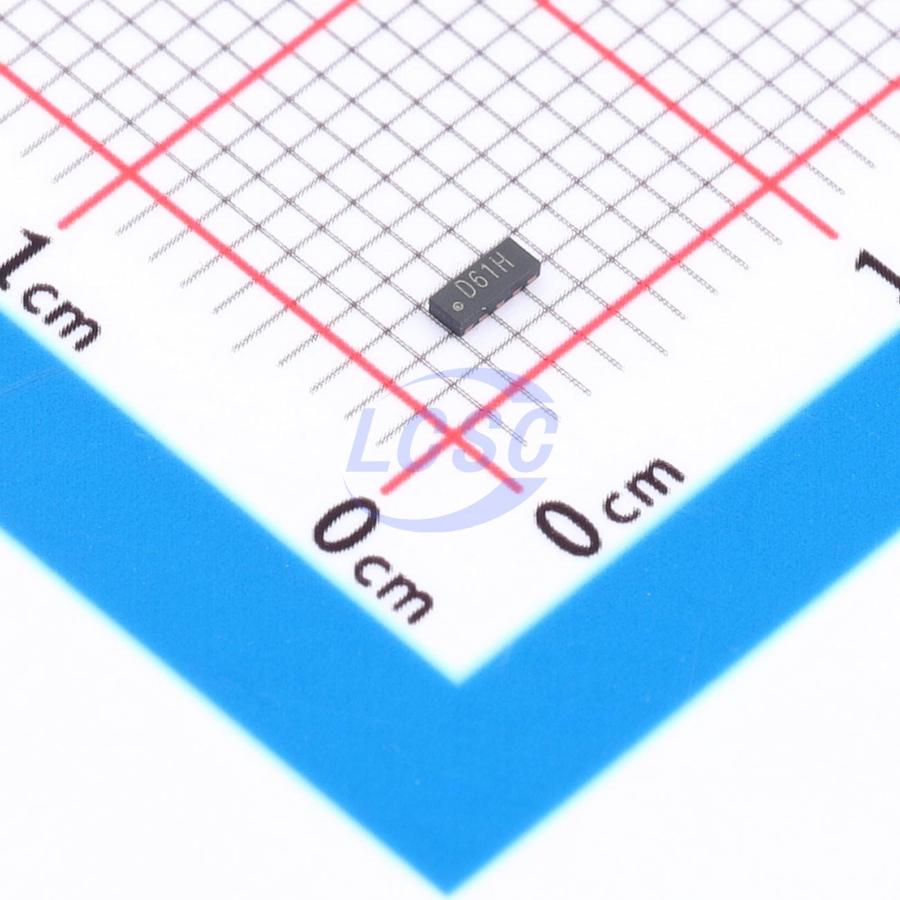

PESD1LVDS-TP

16V 4A@8/20us 80W@8/20us 7V Unidirectional 5V DFN2510-10 TVS Diodes RoHS

DFN2510-10ROHS CompliantActive

ESD DIODE 5VWM 16VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD1LVDS-TP
Store part #: C51939588
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,680 in stock

#C51939588

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
10+	₹6.91	₹69.10
100+	₹5.44	₹544.00
300+	₹4.70	₹1,410.00
3,000+	₹4.14	₹12,420.00
6,000+	₹3.70	₹22,200.00
9,000+	₹3.48	₹31,320.00

Quantity (min 10, multiples of 10)

10 × ₹6.91

₹69.10

excl. GST

₹81.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD1LVDS-TP

₹69.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 7V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

Applications

HDMI
DVI
UDI
MDDI port
PCI Express
Serial ATA

Key features

Ultra-low capacitance: 0.3pF typical (I/O to I/O)
Ultra-low leakage: nanoampere level
Low operating voltage: 5V
Low clamping voltage
Protects up to 4 data lines and 1 power line
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±25kV
Contact discharge: ±20kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Surge): 4A (8/20μs)
RoHS compliant
