NexperiaDatasheet (PDF)

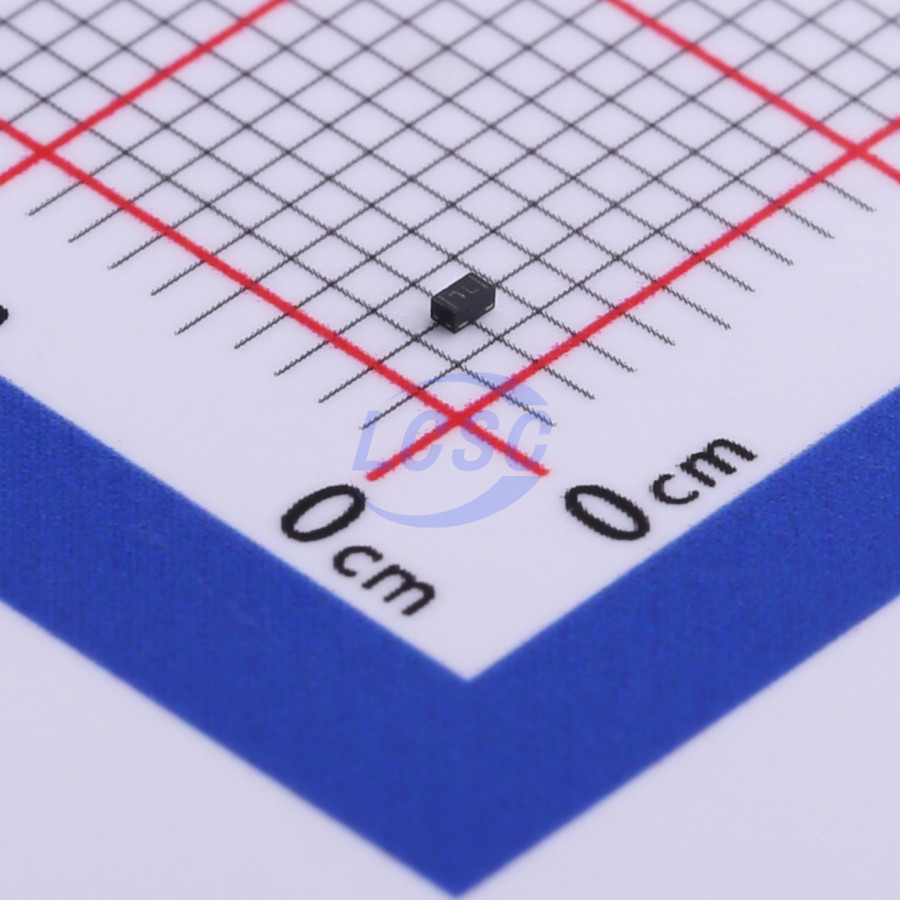

PESD24VF1BL
17VC Clamp 1A@8/20us Ipp ESD DIODE DFN1006-2
DFN1006-2RoHSActive
ESD DIODE 24VWM 17VC DFN1006-2
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD24VF1BL
- Store part #
- C179411
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C179411
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.62 | ₹481.00 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.29 | ₹3,645.00 |
| 2,500+ | ₹6.50 | ₹16,250.00 |
| 5,000+ | ₹6.10 | ₹30,500.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD24VF1BL
₹61.40 for 5 + GST
Specifications
- Clamping Voltage
- 17V
- Peak Pulse Current (Ipp)
- 1A@8/20us
- Voltage - Breakdown
- 31.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a DFN1006-2 (SOD882) ultra small and leadless Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
Applications
- NFC antenna protection
- Protection of high-speed data lines
Key features
- Ultra low diode capacitance Cd = 0.30 pF
- High reverse standoff voltage VRWM = 24 V
- Ultra low leakage current: |IRM| = 1 nA
- ESD protection up to 10 kV; IEC 61000-4-2
- AEC-Q101 qualified
