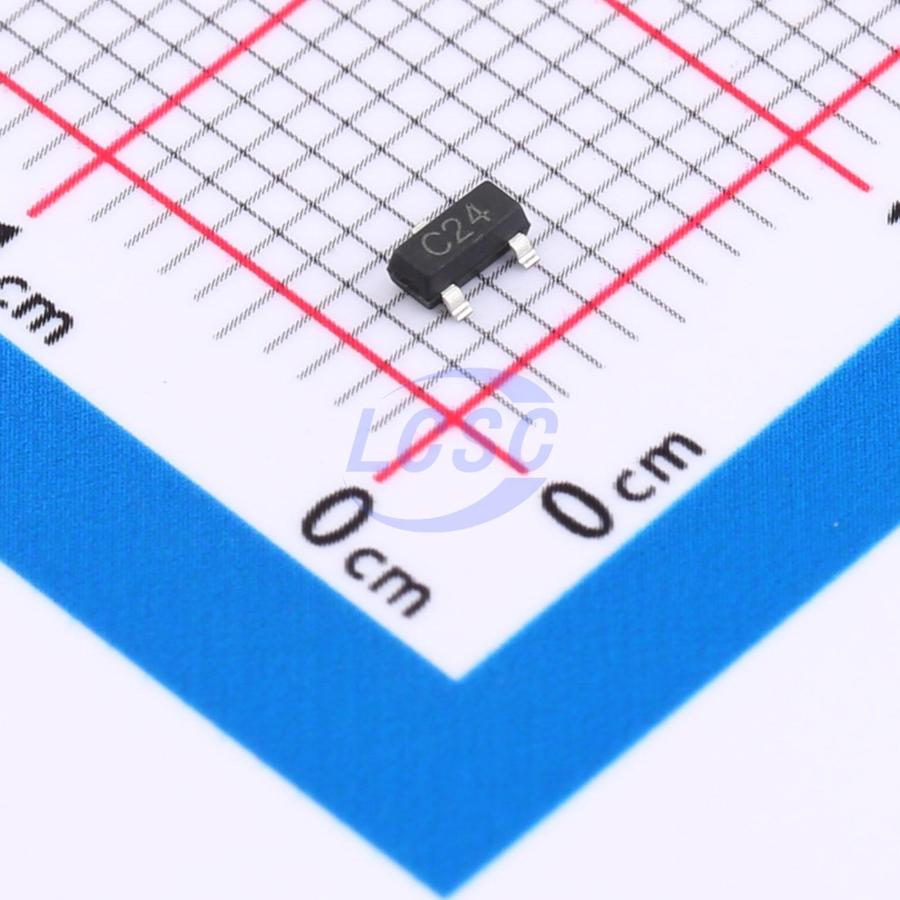

PESD24VL2BT-HXY
50V 200W@8/20us 32V 24V SOT-23 TVS Diodes RoHS
ESD DIODE 24VWM 50VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PESD24VL2BT-HXY
- Store part #
- C49318010
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C49318010
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD24VL2BT-HXY
₹88.50 for 10 + GST
Specifications
- Clamping Voltage
- 50V
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 32V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
The PESD24VL2BT is designed to protect CAN transceivers in high-speed and fault-tolerant networks against ESD and other harmful transient voltage events. The device provides bidirectional protection for each data line in a single compact SOT-23 package, offering system designers a cost-effective solution to improve system reliability and meet stringent EMI requirements.
Applications
- Industrial control networks
- Intelligent power distribution systems
- Automotive networks
- Low-speed and high-speed CAN
- Fault-tolerant CAN
Key features
- IEC 61000-4-2 (ESD) ±30kV (Air) ±20kV (Contact)
- IEC 61000-4-4 (EFT) 40A (5/50 ns)
- IEC 61000-4-5 (Surge) 3A (8/20μs)
- 200W peak pulse power per channel (tp=8/20μs)
- Operating voltage: 24V
- Low leakage current
- Low clamping voltage
