PESD24VS1UB
42VC 55VC Clamp ESD DIODE SOD-523
SOD-523RoHSActive

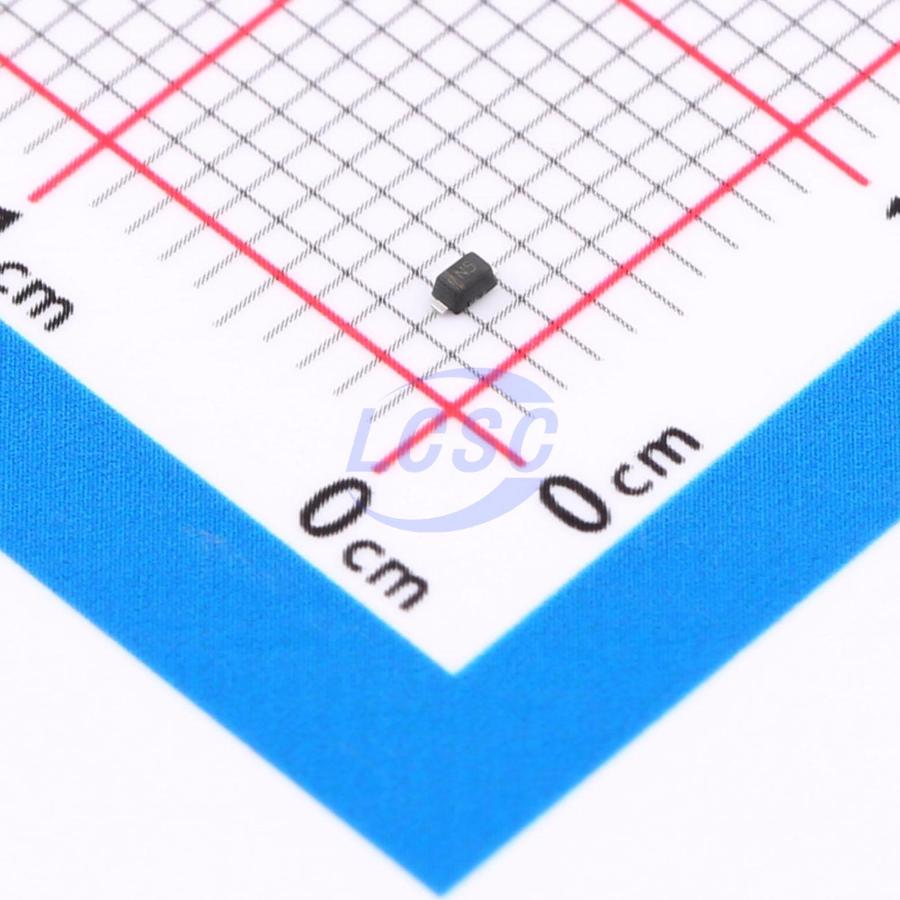

ESD DIODE 24VWM 42VC 55VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD24VS1UB
- Store part #
- C2912533
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C2912533
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.73 | ₹74.60 |
| 200+ | ₹2.96 | ₹592.00 |
| 600+ | ₹2.53 | ₹1,518.00 |
| 3,000+ | ₹2.09 | ₹6,270.00 |
| 9,000+ | ₹1.87 | ₹16,830.00 |
| 21,000+ | ₹1.75 | ₹36,750.00 |
20 × ₹3.73
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD24VS1UB
₹74.60 for 20 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.022 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 25kV (air), ± 20kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
