TECH PUBLIC

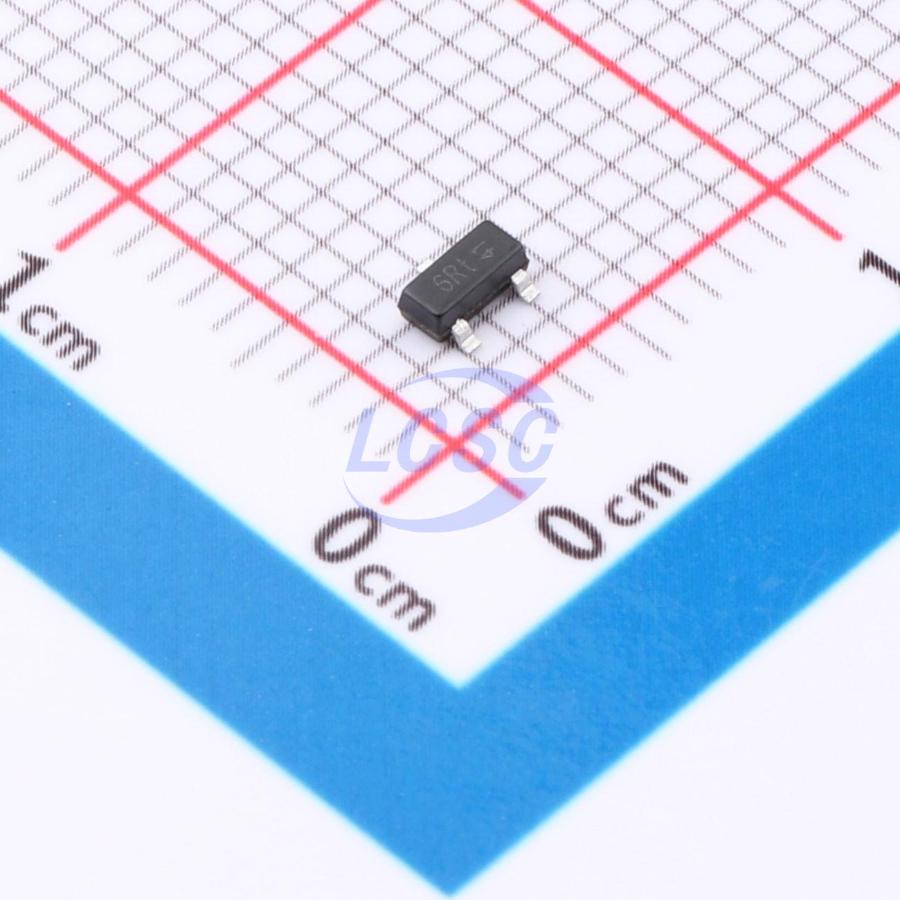

PESD2CAN24T-QR(TP)

43V 7A@8/20us 300W@8/20us 26.7V Bidirectional 24V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD2CAN24T-QR(TP)
Store part #: C53340822
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,490 in stock

#C53340822

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
10+	₹7.08	₹70.80
100+	₹5.58	₹558.00
300+	₹4.84	₹1,452.00
3,000+	₹4.29	₹12,870.00
6,000+	₹3.84	₹23,040.00
9,000+	₹3.61	₹32,490.00

Quantity (min 10, multiples of 10)

10 × ₹7.08

₹70.80

excl. GST

₹83.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD2CAN24T-QR(TP)

₹70.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 43V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 7A@8/20us
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Number of Channels: 2
Voltage - Breakdown: 26.7V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

Applications

Mobile phones and accessories
Laptops and handheld devices
Portable instruments
Set-top boxes
Industrial control
CAN bus protection
Automotive applications

Key features

300W peak pulse power (8/20μs)
Ultra-low leakage: nA-level
Operating voltage: 24V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning Surge) 7A (8/20μs)
RoHS compliant
Package: SOT-23
Lead finish: Matte tin
Case material: "Green" molding compound
UL flammability classification 94V-0
Moisture sensitivity: Level 3 per J STD 020
Packaging quantity: 3000 pcs/7-inch tape reel
