JSMSEMIDatasheet (PDF)

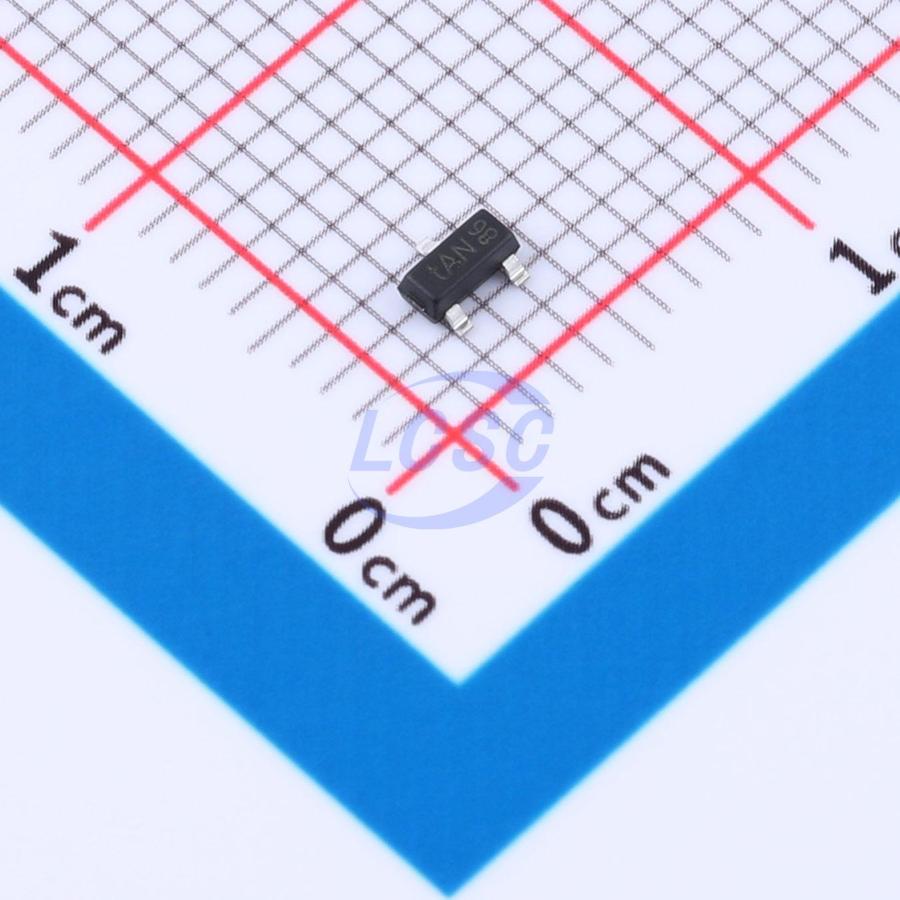

PESD2CANFD24L-TR-JSM
60V 4A@8/20us 230W@8/20us 30.5V Bidirectional 24V SOT-23 TVS Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PESD2CANFD24L-TR-JSM
- Store part #
- C53113916
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C53113916
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.52 | ₹87.60 |
| 50+ | ₹14.04 | ₹702.00 |
| 150+ | ₹12.30 | ₹1,845.00 |
| 500+ | ₹10.99 | ₹5,495.00 |
| 3,000+ | ₹9.37 | ₹28,110.00 |
| 6,000+ | ₹8.85 | ₹53,100.00 |
5 × ₹17.52
₹87.60
excl. GST
₹103.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD24L-TR-JSM
₹87.60 for 5 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 230W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 30.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
