TECH PUBLICDatasheet (PDF)

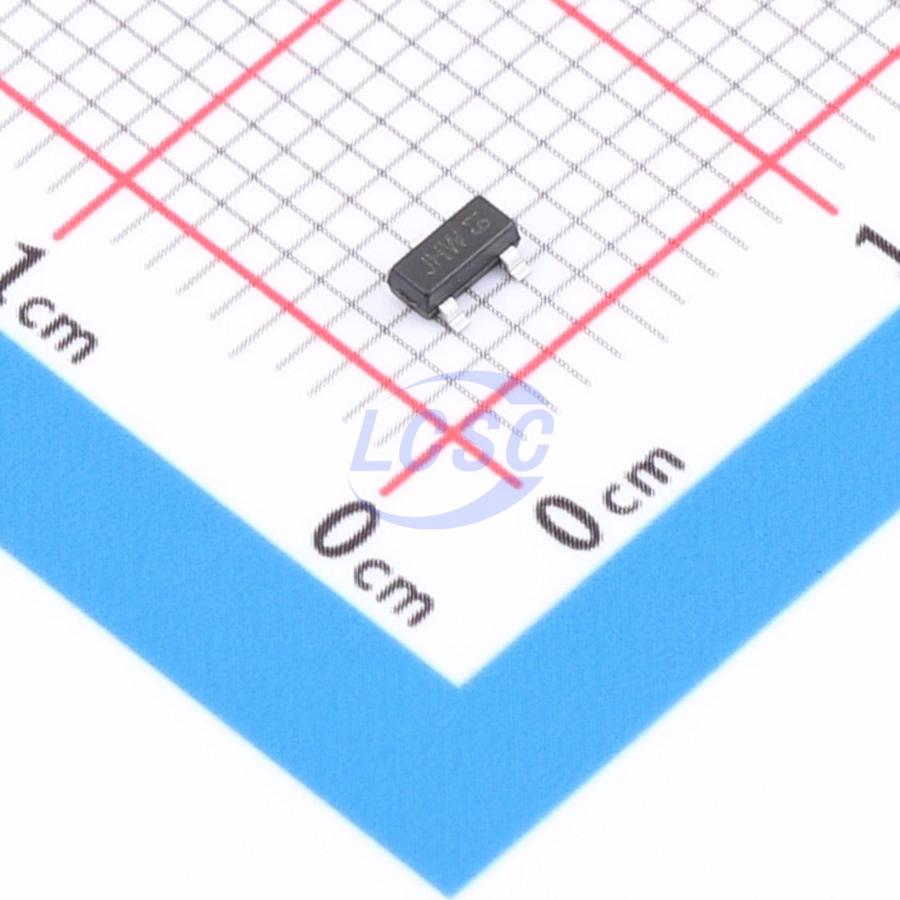

PESD2CANFD24L-TR(TP)
40V 4A@8/20us 140W@8/20us 26.7V Bidirectional 24V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD2CANFD24L-TR(TP)
- Store part #
- C54194962
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C54194962
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD24L-TR(TP)
₹53.10 for 5 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- Cellular phones and accessories
- Laptops and handheld devices
- Portable instruments
- Set-top boxes
- Industrial control
- CAN bus protection
- Automotive applications
Key features
- 150W peak pulse power (8/20μs)
- Ultra-low leakage: nanoamp level
- Operating voltage: 24V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 4A (8/20μs)
- RoHS compliant
- Package: SOT-23
- Lead finish: Matte tin
- Case material: "Green" molding compound, UL flammability rating 94V-0
- Moisture sensitivity: Level 3 per J STD 020
- Packaging quantity: 3000 pcs/7-inch tape reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPESD24VV2BTR#C55114349TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹16.07 · 3,000 in stock | View | |
 | PESD2IVN24-TR#C42460238TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 89,850 | ₹5.61 · 89,850 in stock | View |
 | TPESD2IVN24T-QR#C54195059TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,800 | ₹13.27 · 2,800 in stock | View |
