TECH PUBLIC

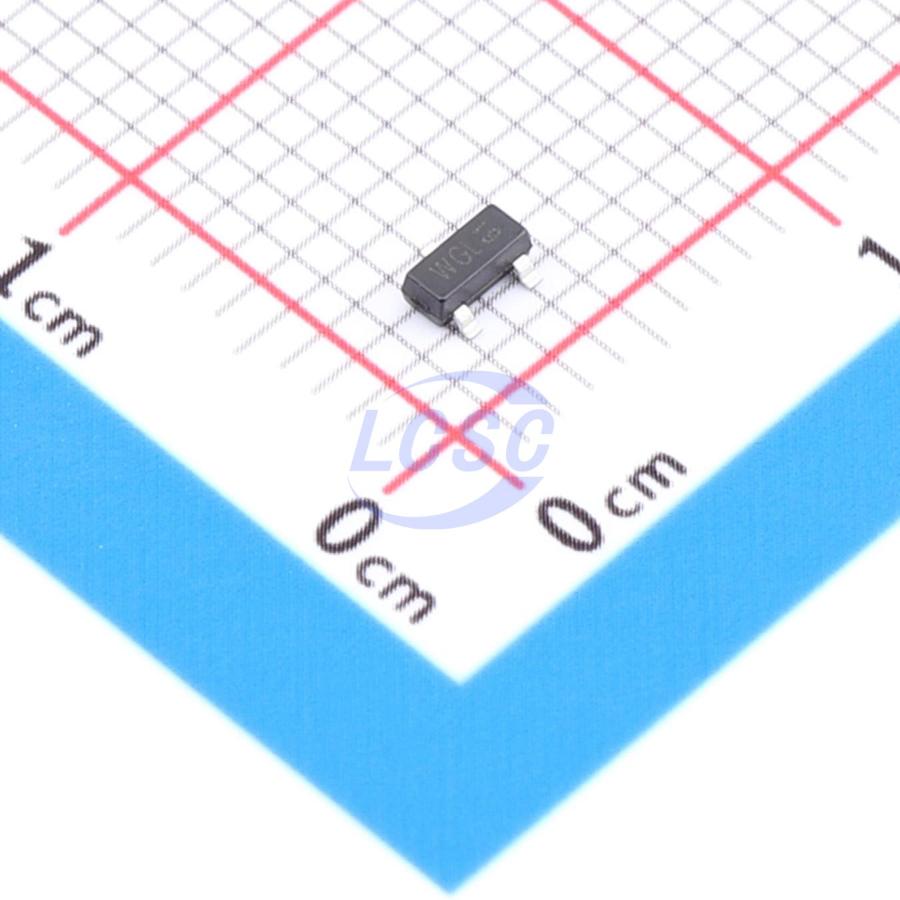

PESD2CANFD24V-TR(TP)

43V 2A@8/20us 90W@8/20us 26.7V Bidirectional 24V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD2CANFD24V-TR(TP)
Store part #: C53340824
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,400 in stock

#C53340824

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
10+	₹6.91	₹69.10
100+	₹5.45	₹545.00
300+	₹4.72	₹1,416.00
3,000+	₹4.18	₹12,540.00
6,000+	₹3.74	₹22,440.00
9,000+	₹3.53	₹31,770.00

Quantity (min 10, multiples of 10)

10 × ₹6.91

₹69.10

excl. GST

₹81.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD2CANFD24V-TR(TP)

₹69.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 43V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 2A@8/20us
Peak Pulse Power Dissipation (Ppp): 90W@8/20us
Number of Channels: 2
Voltage - Breakdown: 26.7V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

Applications

Mobile phones and accessories
Laptops and handheld devices
Portable instruments
Set-top boxes
Industrial control
CAN bus protection
Automotive applications

Key features

90W peak pulse power (8/20μs)
Ultra-low leakage: nA-level
Operating voltage: 24V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test: air discharge ±25kV, contact discharge ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 2A (8/20μs)
RoHS compliant
Package: SOT-23
Lead finish: matte tin
Body material: "Green" molding compound
UL flammability classification 94V-0
Moisture sensitivity: Level 3 per J STD 020
Packaging quantity: 3000 pcs / 7-inch tape reel
