NexperiaDatasheet (PDF)

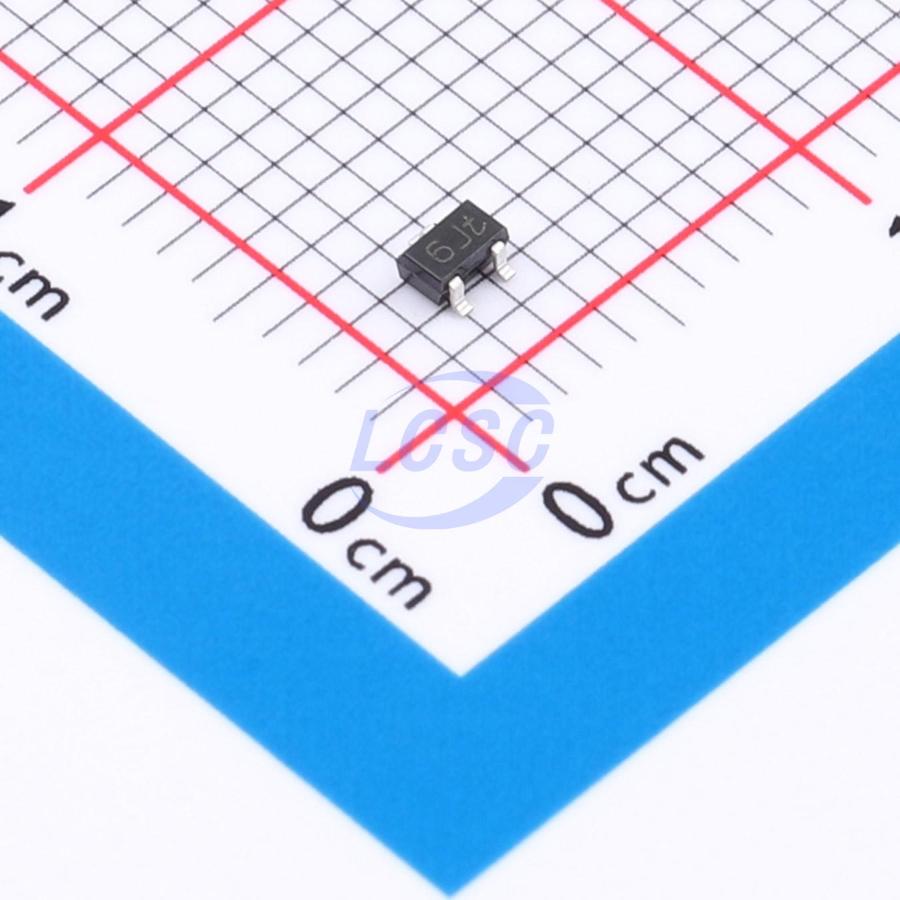

PESD2CANFD36LU-QF
47VC Clamp 3.2A@8/20us Ipp ESD DIODE SOT-323
SOT-323ROHS3 CompliantActive
ESD DIODE 36VWM 47VC SOT-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2CANFD36LU-QF
- Store part #
- C7025659
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C7025659
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.68 | ₹223.40 |
| 50+ | ₹34.90 | ₹1,745.00 |
| 150+ | ₹30.71 | ₹4,606.50 |
| 500+ | ₹25.47 | ₹12,735.00 |
| 2,500+ | ₹23.14 | ₹57,850.00 |
| 5,000+ | ₹21.75 | ₹1,08,750.00 |
5 × ₹44.68
₹223.40
excl. GST
₹263.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD2CANFD36LU-QF
₹223.40 for 5 + GST
Specifications
- Clamping Voltage
- 43V
- Peak Pulse Current (Ipp)
- 3.2A@8/20us
- Voltage - Breakdown
- 47V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
ESD protection device in a small SOT323 Surface-Mounted Device (SMD) plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.
Applications
- ESD protection for in-vehicle network lines in automotive environments
- 24 V board net / truck systems
- CAN / CAN - FD
- FlexRay SENT
Key features
- Reverse stand-off voltage: VRWM = 36 V
- Low clamping voltage: VCL = 43 V at ΠPP = Π1 A
- ESD protection up to 22 kV (IEC 61000 - 4 - 2)
- Low capacitance: Cd = 10 pF
- Qualified according to AEC - Q101 and recommended for use in automotive applications
