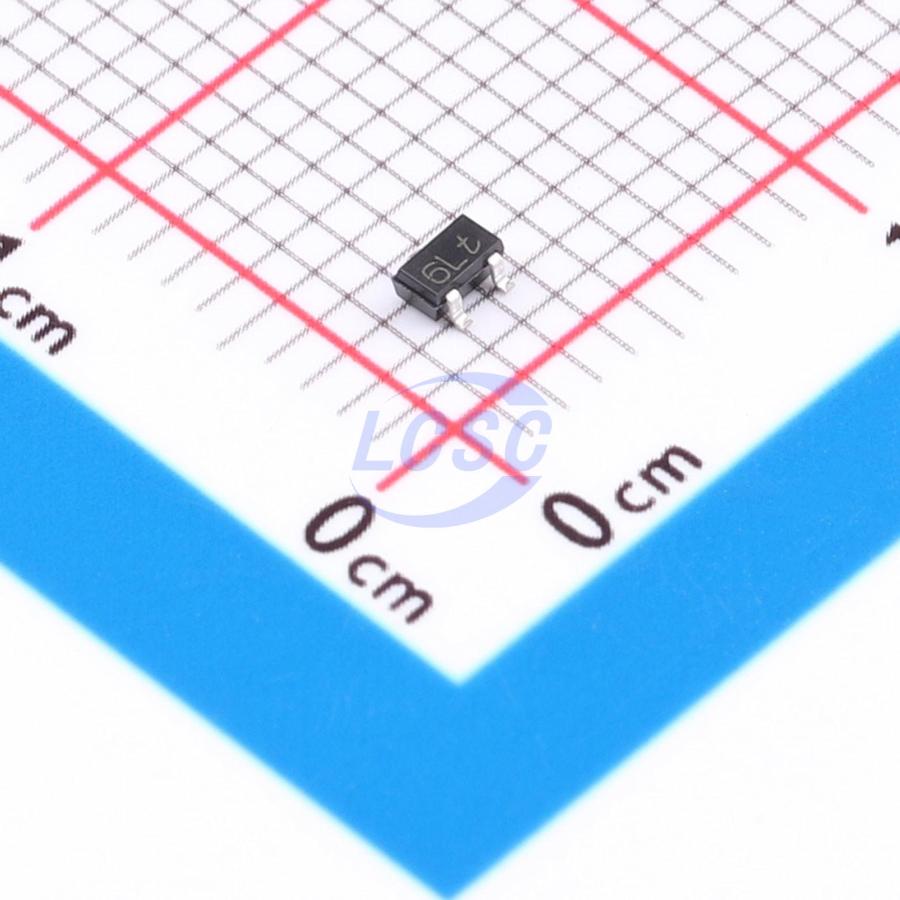

Nexperia

PESD2CANFD36UU-QF

45VC Clamp TVS DIODE SOT-323

SOT-323ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: PESD2CANFD36UU-QF
Store part #: C6357004
Package / case: SOT-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C6357004

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹60.61	₹60.61
10+	₹47.35	₹473.50
30+	₹41.70	₹1,251.00
100+	₹34.54	₹3,454.00
500+	₹31.50	₹15,750.00
1,000+	₹29.54	₹29,540.00

Quantity (min 1)

1 × ₹60.61

₹60.61

excl. GST

₹71.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

PESD2CANFD36UU-QF

₹60.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 45V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 1.5A@8/20us
Number of Channels: 2
Voltage - Breakdown: 37V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 50nA
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.054 g

Overview

ESD protection device in a small SOT323 Surface-Mounted Device (SMD) plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.

Applications

ESD protection for in-vehicle network lines in automotive environments
24 V board net / truck systems
CAN / CAN-FD
FlexRay SENT

Key features

Reverse stand-off voltage: VRWM = 36 V
Low clamping voltage: VCL = 48V at IPP = 1 A
ESD protection up to 15 kV (IEC 61000-4-2)
Low capacitance: Cd = 4.3 pF
Qualified according to AEC-Q101 and recommended for use in automotive applications
