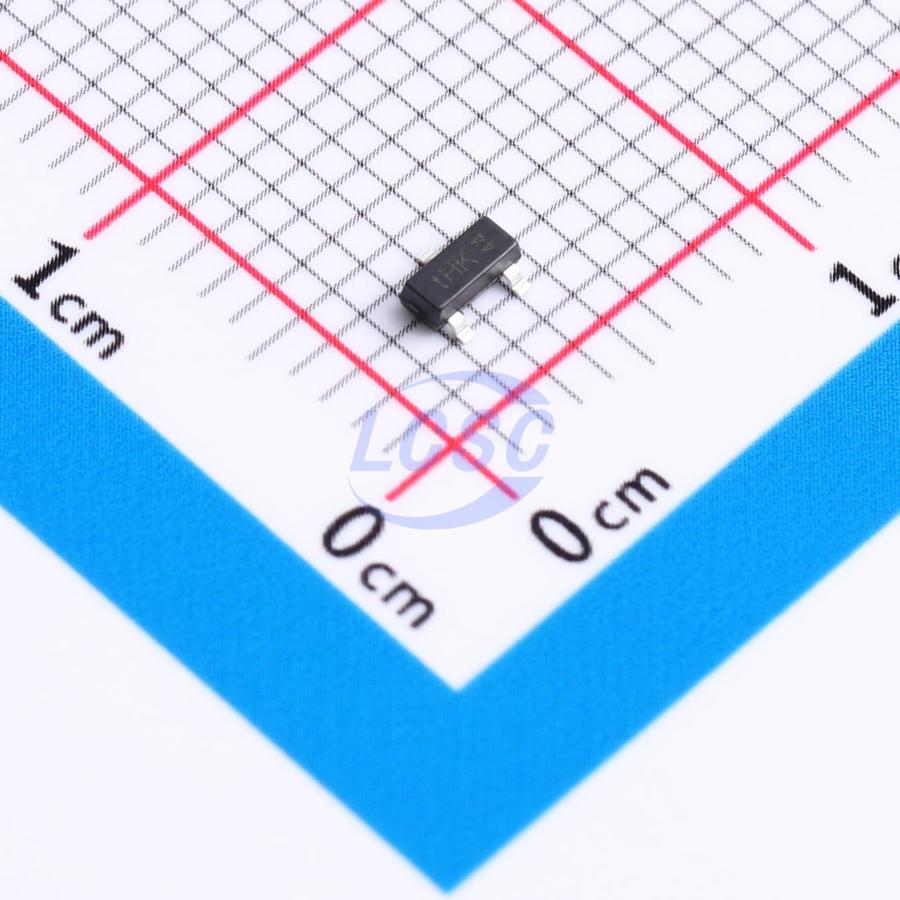

TECH PUBLIC

PESD2ETH1G-TR

43V 2A@8/20us 90W@8/20us 26.7V Bidirectional 24V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD2ETH1G-TR
Store part #: C52098186
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,810 in stock

#C52098186

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
10+	₹6.44	₹64.40
100+	₹5.07	₹507.00
300+	₹4.38	₹1,314.00
3,000+	₹3.86	₹11,580.00
6,000+	₹3.45	₹20,700.00
9,000+	₹3.24	₹29,160.00

Quantity (min 10, multiples of 10)

10 × ₹6.44

₹64.40

excl. GST

₹75.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD2ETH1G-TR

₹64.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 43V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 2A@8/20us
Peak Pulse Power Dissipation (Ppp): 90W@8/20us
Number of Channels: 2
Voltage - Breakdown: 26.7V
Polarity: Bidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

Applications

Mobile phones and accessories
Laptops and handheld devices
Portable instruments
Set-top boxes
Industrial control
CAN bus protection
Automotive applications

Key features

90W peak pulse power (8/20μs)
Ultra-low leakage current: nA level
Operating voltage: 24V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 2A (8/20μs)
RoHS compliant
