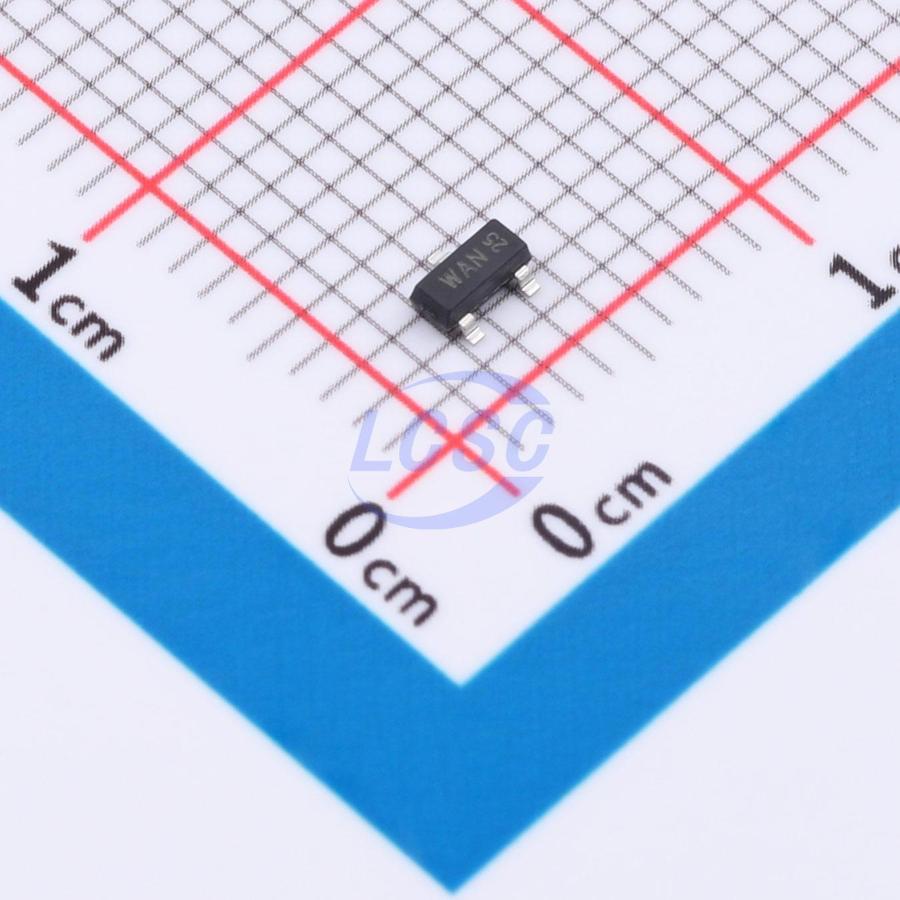

PESD2ETH1G-TR-JSM
42V 4A@8/20us 300W@8/20us 26V Bidirectional 24V SOT-23 TVS Diodes RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PESD2ETH1G-TR-JSM
- Store part #
- C53113984
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C53113984
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.11 | ₹81.10 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.70 | ₹1,710.00 |
| 3,000+ | ₹4.83 | ₹14,490.00 |
| 6,000+ | ₹4.34 | ₹26,040.00 |
| 9,000+ | ₹4.10 | ₹36,900.00 |
10 × ₹8.11
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2ETH1G-TR-JSM
₹81.10 for 10 + GST
Specifications
- Clamping Voltage
- 42V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
PESD2ETH1G-TR-JSM is an ultra-low capacitance transient voltage suppressor array designed to protect applications such as portable electronic devices and smartphones. This series offers a bidirectional configuration with a rated power of 300W for 8/20μs waveforms. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are primary concerns. This series provides ultra-low capacitance and low leakage current in a compact SOT-23 package.
Applications
- Ethernet 10/100/1000 Base T
- Handheld wireless systems
- Servers, notebooks, and desktop PCs
- Smartphones
- USB interfaces
- Mobile phones and accessories
Key features
- IEC 61000-4-2 Level 4 ESD protection
- ±25kV contact discharge
- ±25kV air discharge
- 300W peak pulse power (8/20µs)
- Low clamping voltage
- Protects two bidirectional or two unidirectional lines
- Low leakage current
- RoHS compliant
