TECH PUBLICDatasheet (PDF)

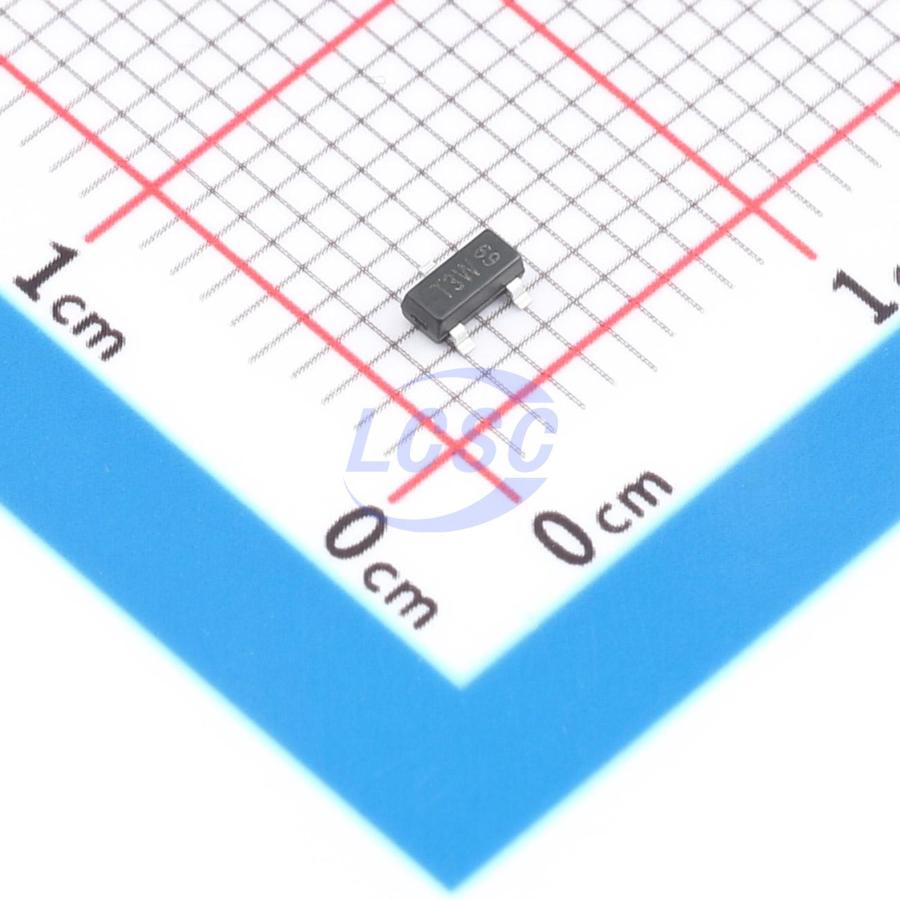

PESD2IVN27T-QR(TP)
50V 4A@8/20us 200W@8/20us 30V Bidirectional 27V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD2IVN27T-QR(TP)
- Store part #
- C54561887
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C54561887
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.03 | ₹80.15 |
| 50+ | ₹12.61 | ₹630.50 |
| 150+ | ₹10.89 | ₹1,633.50 |
| 500+ | ₹9.60 | ₹4,800.00 |
| 3,000+ | ₹8.59 | ₹25,770.00 |
| 6,000+ | ₹8.07 | ₹48,420.00 |
5 × ₹16.03
₹80.15
excl. GST
₹94.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2IVN27T-QR(TP)
₹80.15 for 5 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 30V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 27V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- CAN
- CAN-FD
- FlexRay
- Portable instruments
- USB power and data cables
Key features
- Low operating voltage: 27V
- Ultra-low capacitance: 0.4pF (typical)
- Ultra-low leakage: nanoampere level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning Surge) 4A (8/20μs)
- 3-pin lead-free package
- Lead-free devices
- Response time typically < 1 ns
